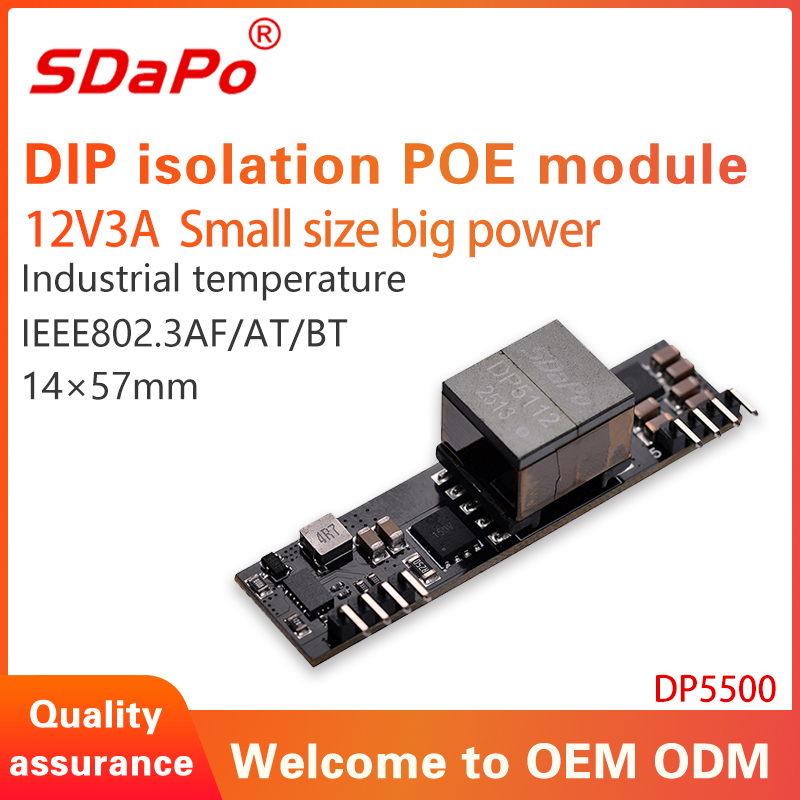

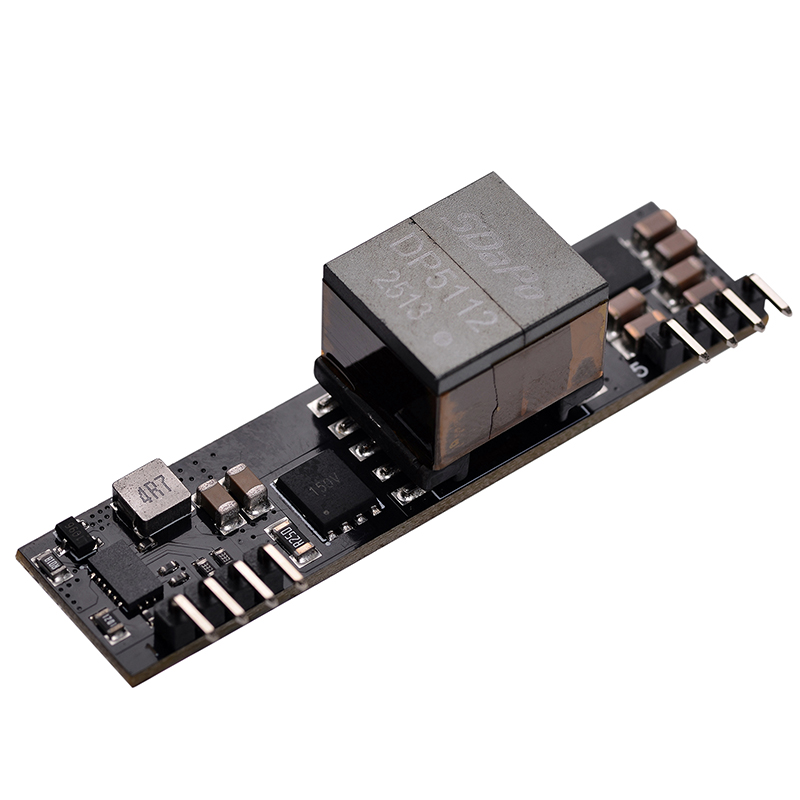

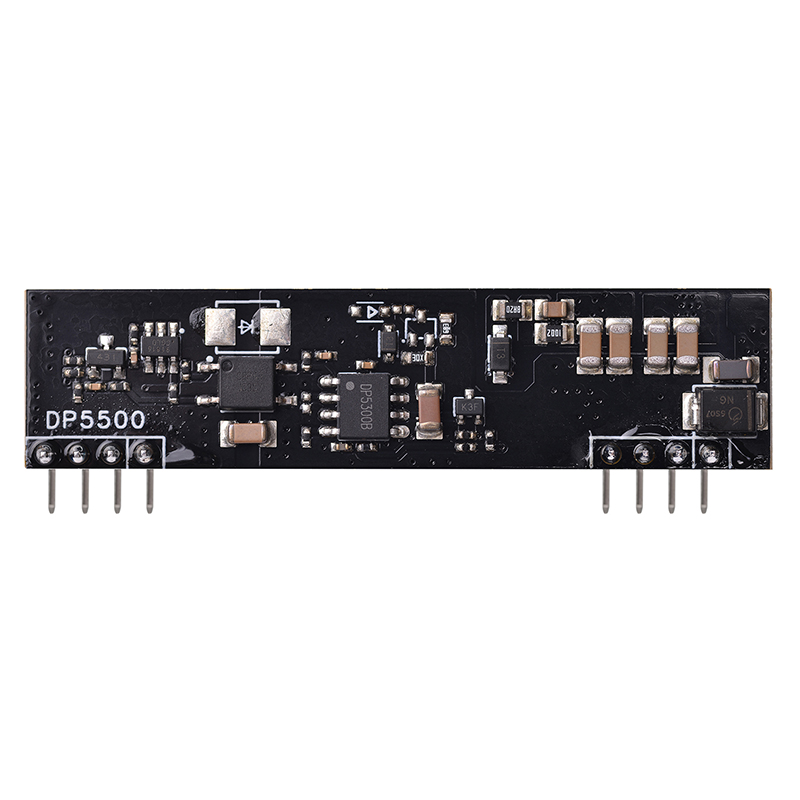

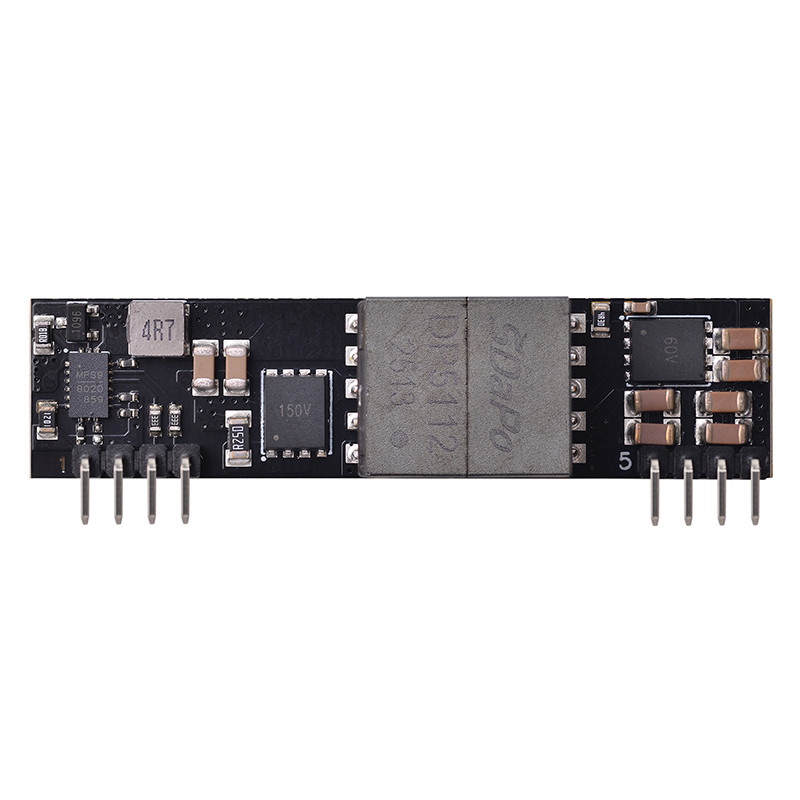

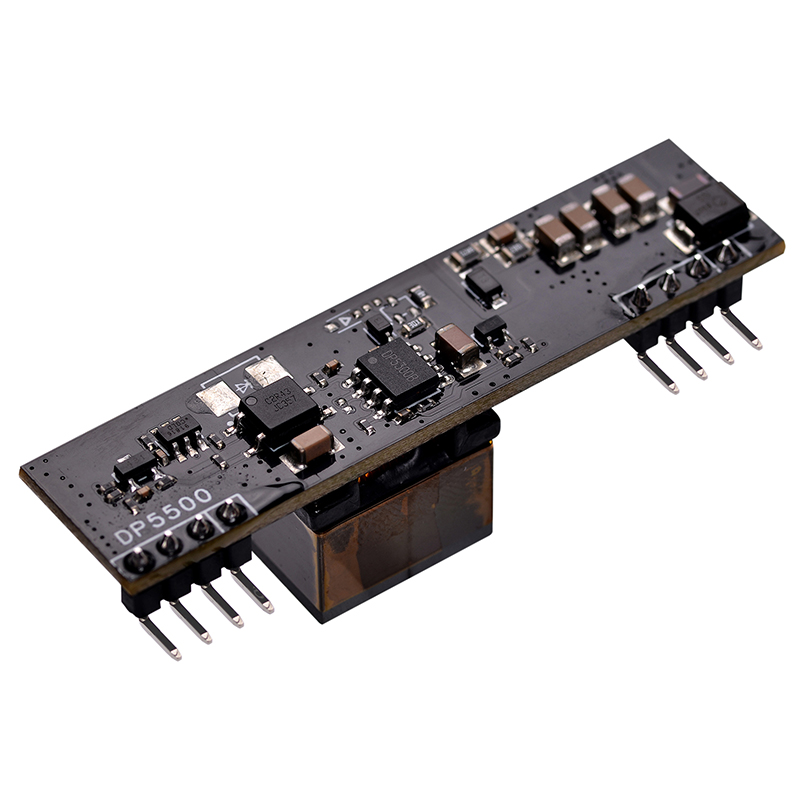

DP5500 12V3A PoE Module PD Module

Name: DP5500 12V3A PoE Module PD Module
Brand: SDaPo
SKU: 534490327
Rating: 5.0 (65 reviews)

1) IEEE802.3af/at/bt Standard
2) PoE IN:44-57V
3) DC/OUT:12V3A
4) ISO:1.5KV
5) ModeA or ModeB

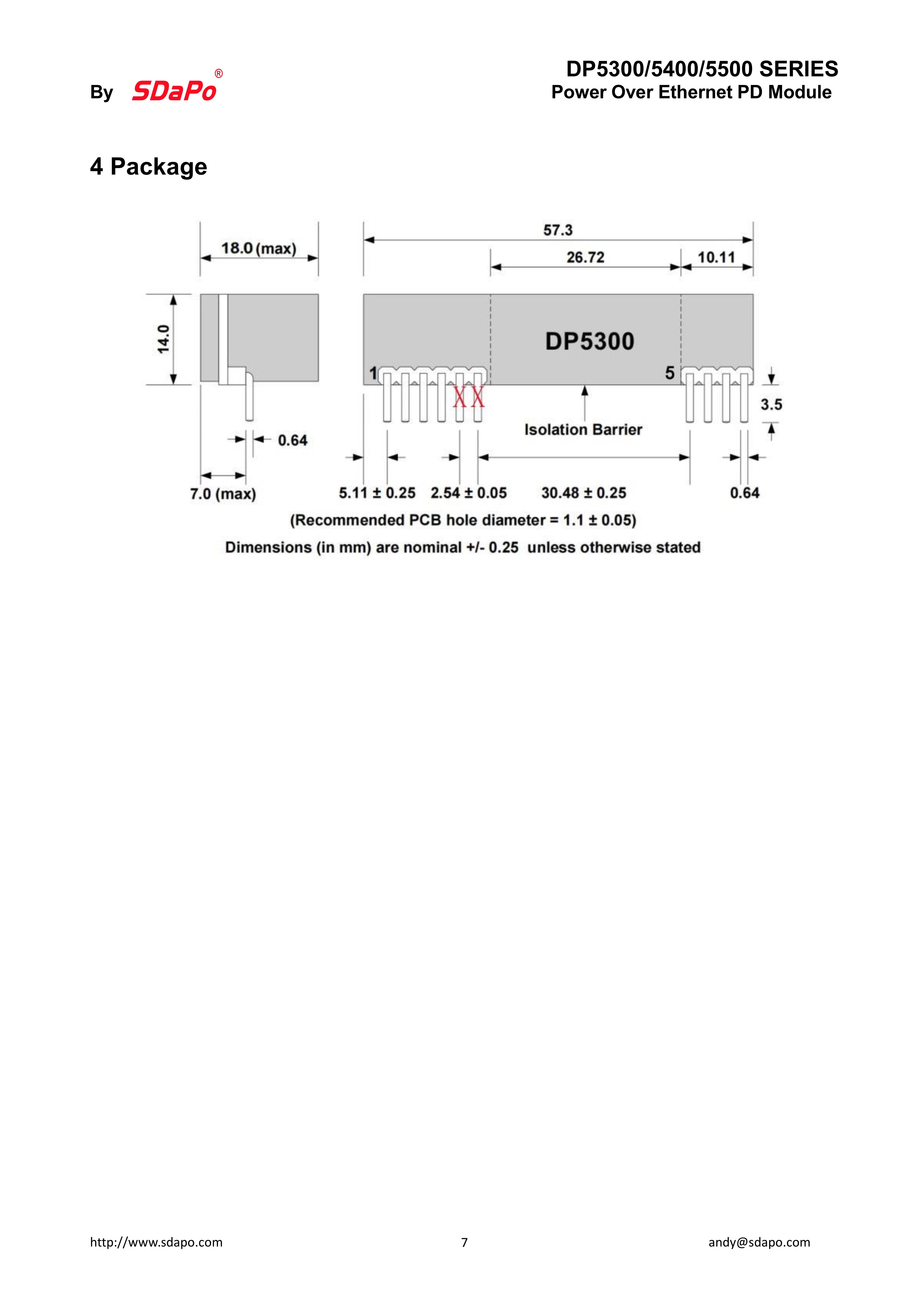

6) Size:14*57.3mm
7) total power:36W
8) support 10M/100M/1000M/10G etc.
9)Industrial temperature to -40 ℃ to 85 ℃
10)no capacitance version
11)Pin to pin DP5300 use,small size for BT standard

Model:
DP5500
Brand:
SDaPo

Output Vdc:	DP5400-12V3A
Availability:

Quantity:



Inquire Add to Basket

You are welcome to customize the POE modules of various size and connector and function.

The layout is after receive the research and development fee.

After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund.

It takes 7-10 days to produce samples.After the sample is qualified, batch production.

No.	Part Number	Nominal Output Voltage	Output Power	PoE Standard	Remarks	Temperature Range	PoE Modes	Isolation Voltage	Buy Sampls
1	DP5300-5V	5.0V	25W	802.3at		Industrial	Mode A / Mode B	1.5kVrms	Inquiry us
2	DP5300-12V	12.0V	27W	802.3at		Industrial	Mode A / Mode B	1.5kVrms	Inquiry us
3	DP5300-24V	24.0V	26W	802.3at		Industrial	Mode A / Mode B	1.5kVrms	Inquiry us
4	DP5400-5V	5.0V	27W	802.3at	Synchronous Rectification	Industrial	Mode A / Mode B	1.5kVrms	Inquiry us
5	DP5400-12V	12.0V	27W	802.3at	Synchronous Rectification	Industrial	Mode A / Mode B	1.5kVrms	Inquiry us
6	DP5500-12V	12.0V	42W	802.3bt		Industrial	Mode A / Mode B	1.5kVrms	Inquiry us

DP5500 12V3A PoE PD Module DP5512 12V3A PoE PD Module poe smart module poe ethernet module 12v poe module poe power module board 48v custom poe boards design poe module board poe module 24V
