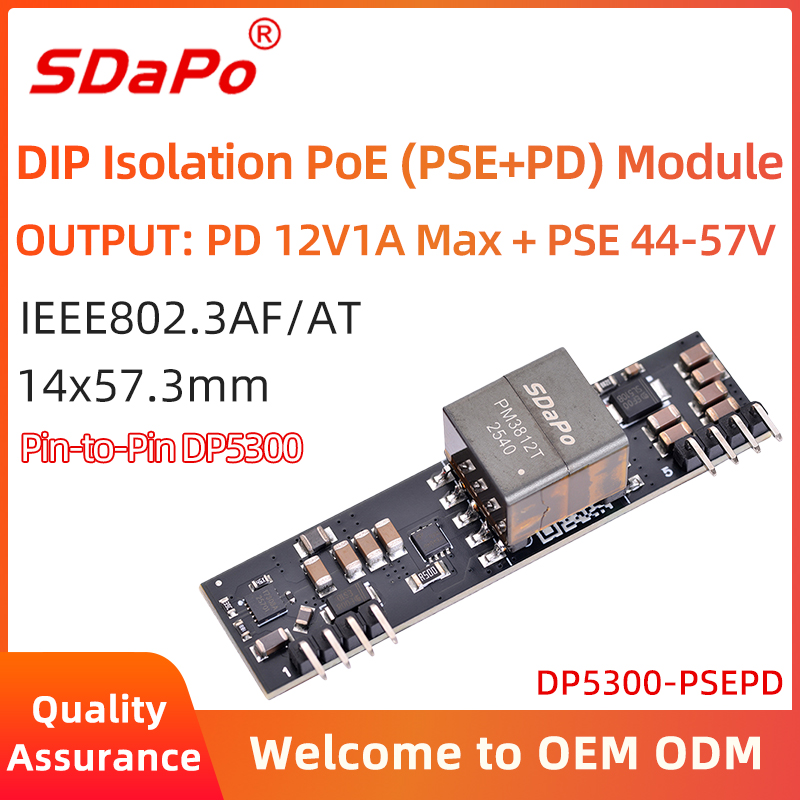

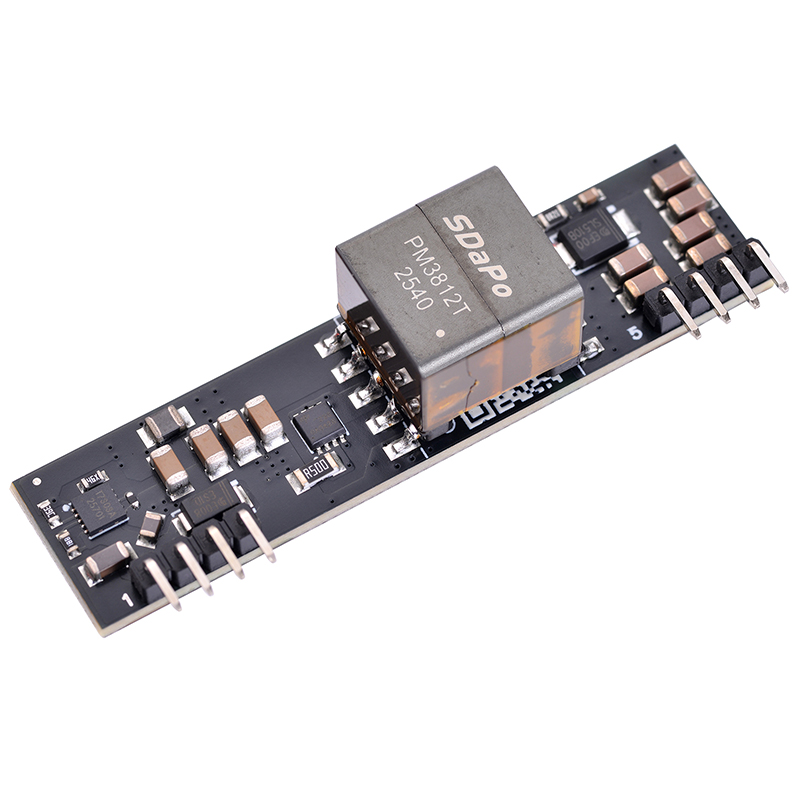

DP5300-PSEPD PoE Mdoule Output PD12V1A Max PSE 44~57V Isolated Type IEEE802.3bt PoE Module Board

You are here: Home » Products » POE Module » IEEE802.3at » DP5300-PSEPD PoE Mdoule Output PD12V1A Max PSE 44~57V Isolated Type IEEE802.3bt PoE Module Board

DP5300-PSEPD PoE Mdoule Output PD12V1A Max PSE 44~57V Isolated Type IEEE802.3bt PoE Module Board

Name: DP5300-PSEPD PoE Mdoule Output PD12V1A Max PSE 44~57V Isolated Type IEEE802.3bt PoE Module Board
Brand: SDaPo
SKU: 555212696
Rating: 5.0 (60 reviews)

1) IEEE802.3af/at Standard
2) PoE IN:44-57V(30W)
3) OUTPUT: PD 12V1A Max + PSE 44-57V
4) ISO:1.5KV
5) ModeA or ModeB
6) Size:14*57.3mm
7) PSE output power: 29W Max
8) Support 10M/100M/1000M/10G etc.
9) Industrial temperature to -40℃ to 85℃
10) No capacitance version
11) Pin to pin DP5300 Pin definition

Model:
DP5300-PSEPD
Brand:
SDaPo

Output Vdc:	DP5300-PSEPD
Availability:

Quantity:



Inquire Add to Basket

You are welcome to customize the POE modules of various size and connector and function.

The layout is after receive the research and development fee.

After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund.

It takes 7-10 days to produce samples.After the sample is qualified, batch production.

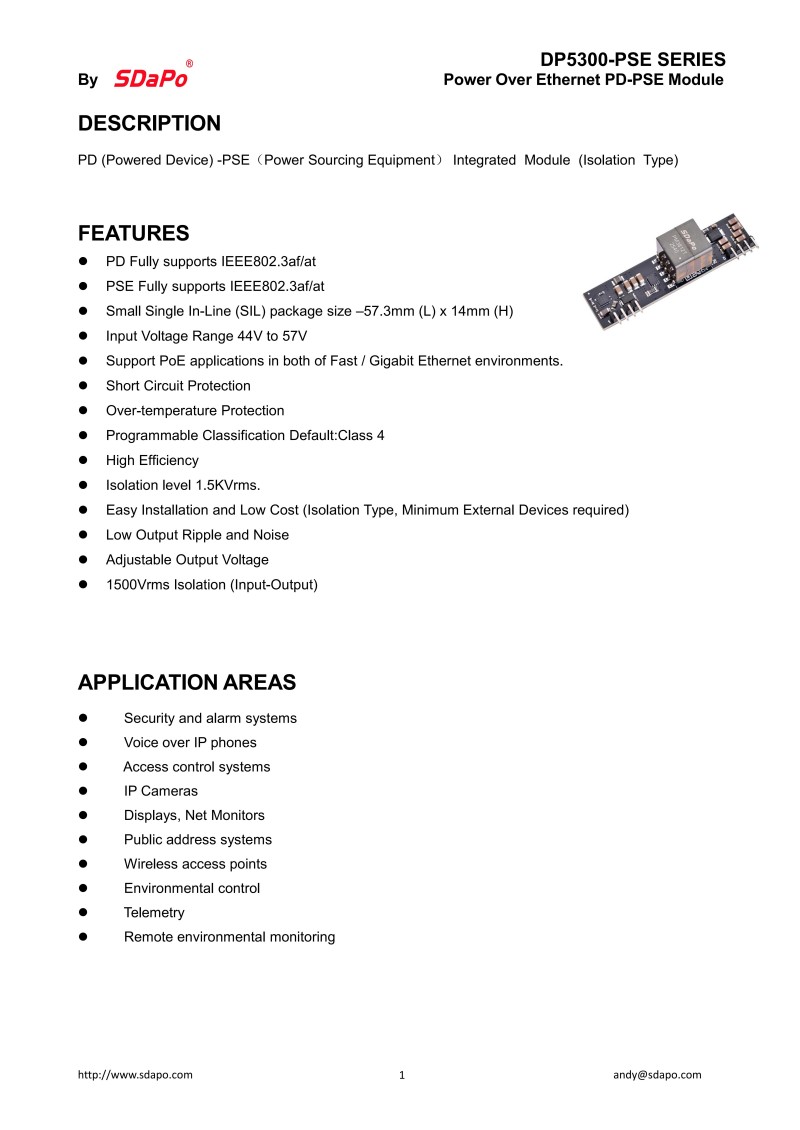

DP5300-PSE_01

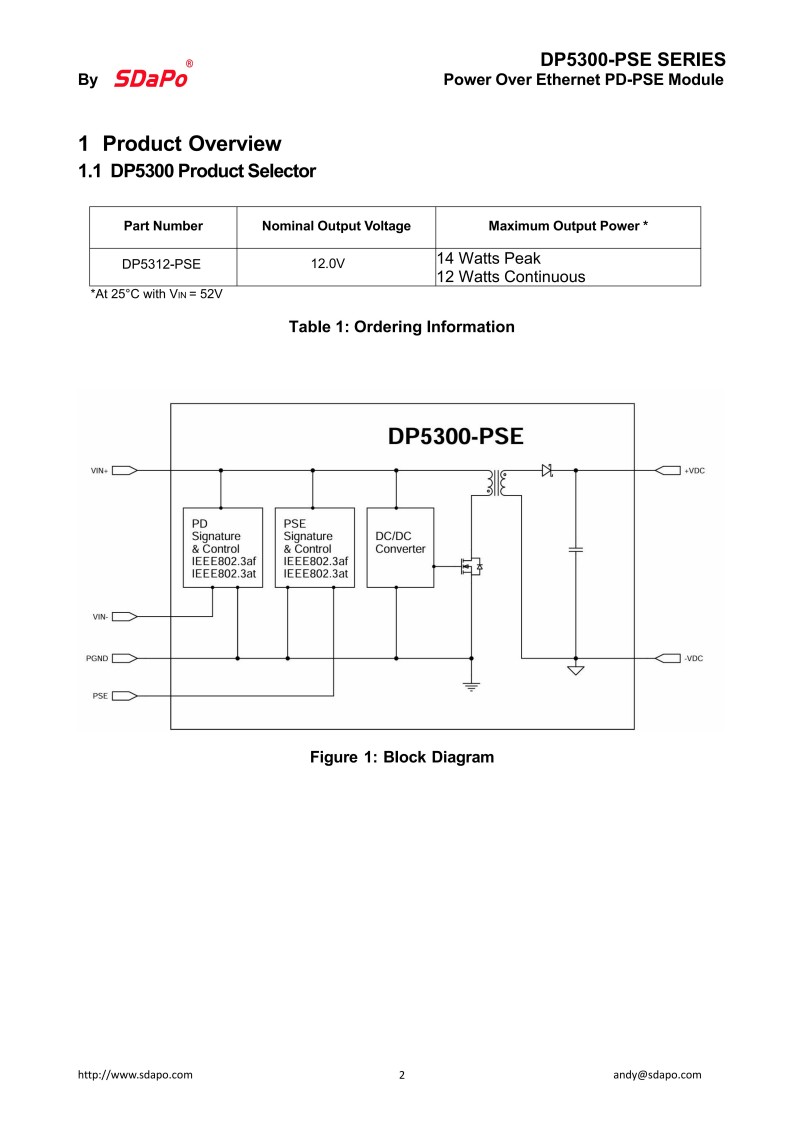

DP5300-PSE_02

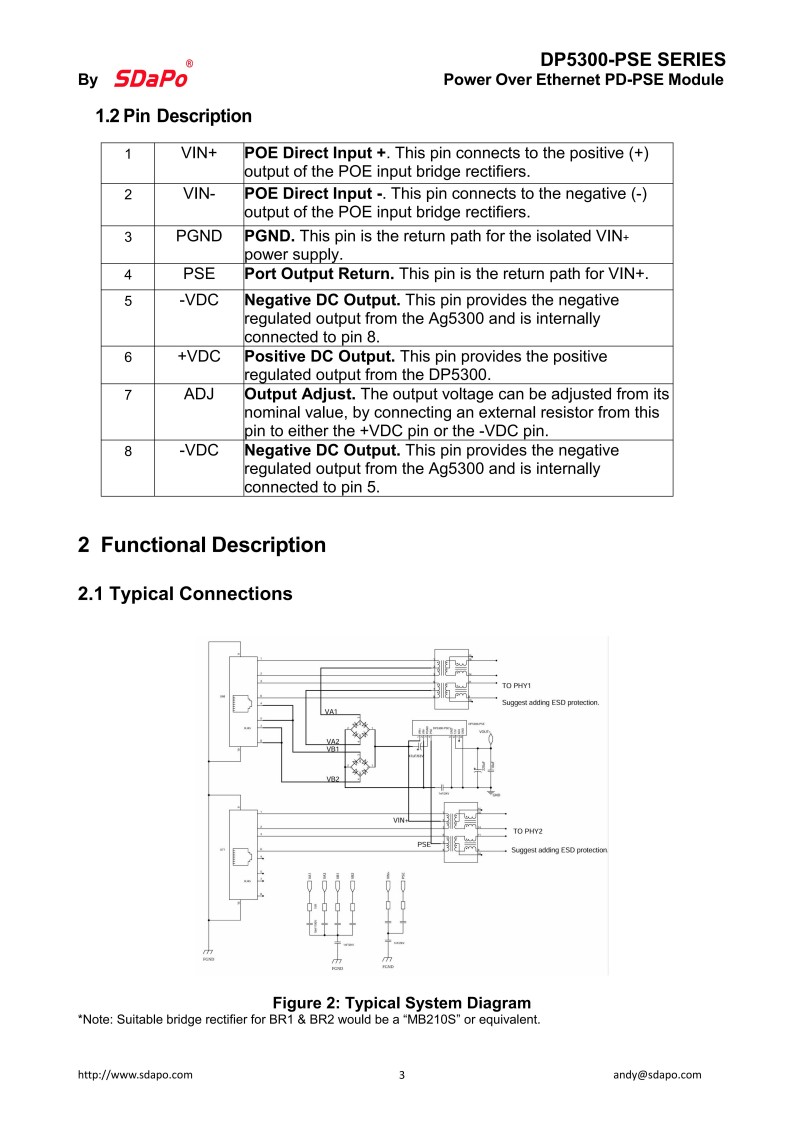

DP5300-PSE_03
DP5300-PSE_04

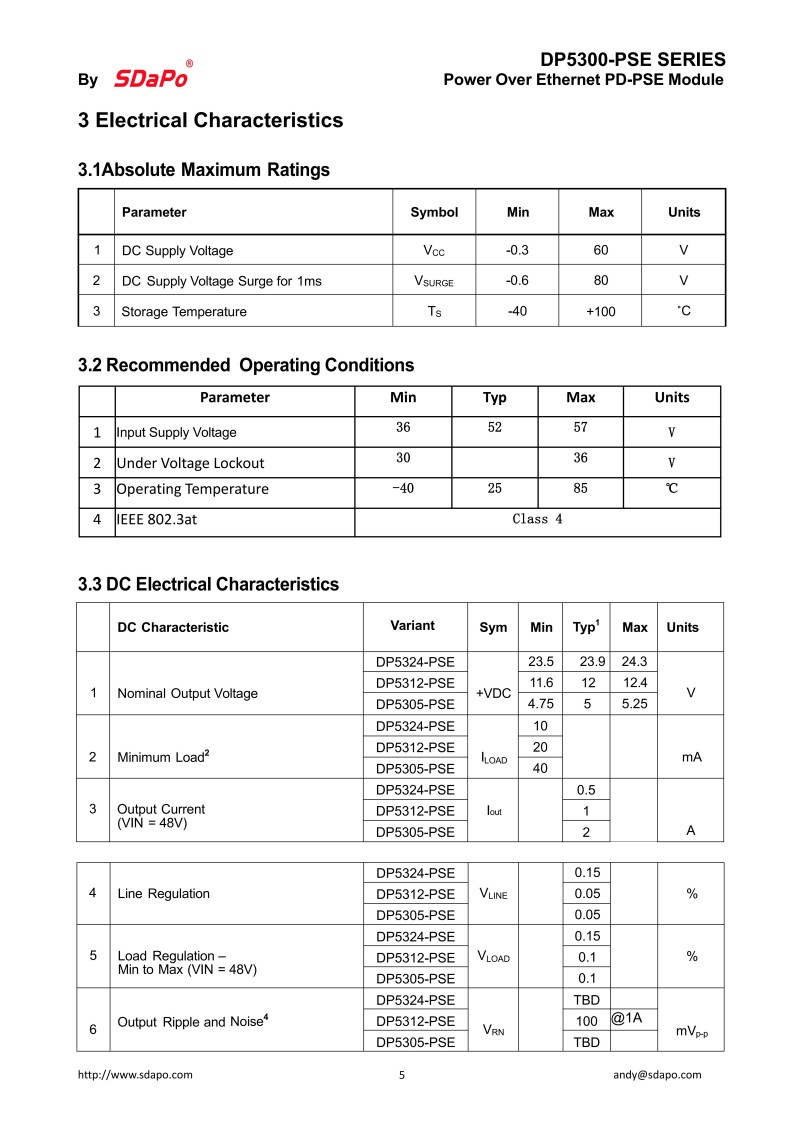

DP5300-PSE_05

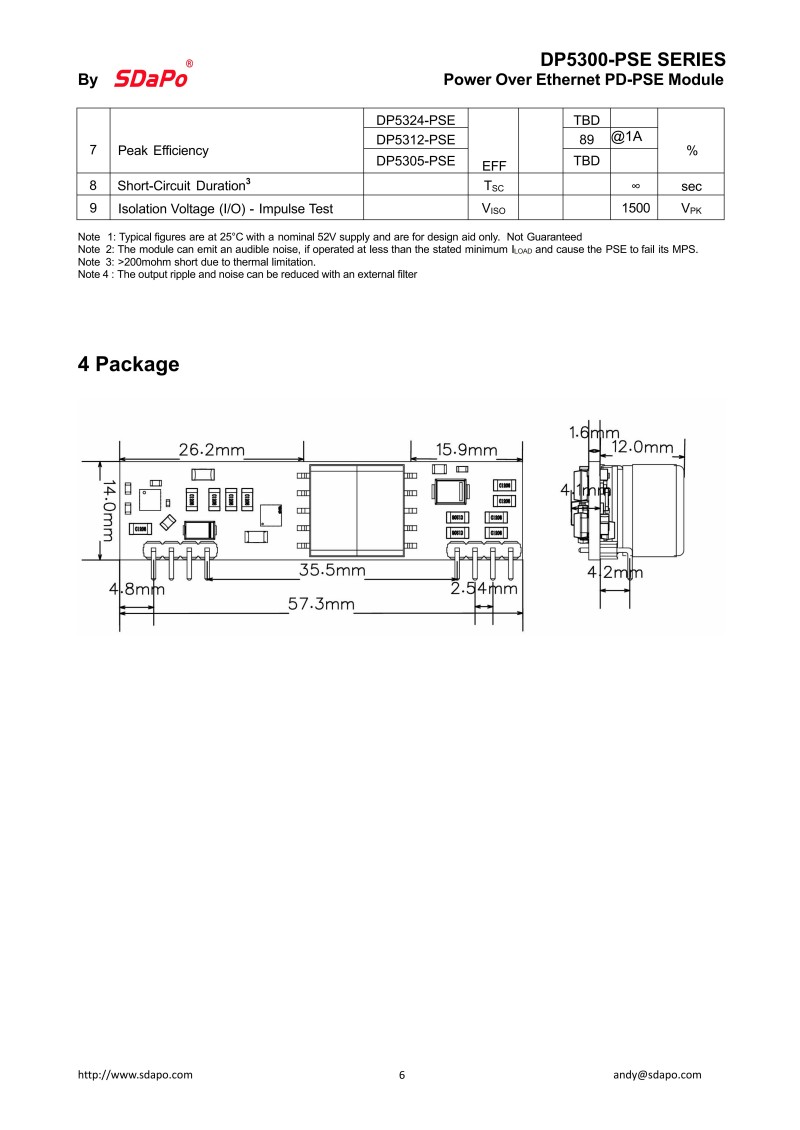

DP5300-PSE_06

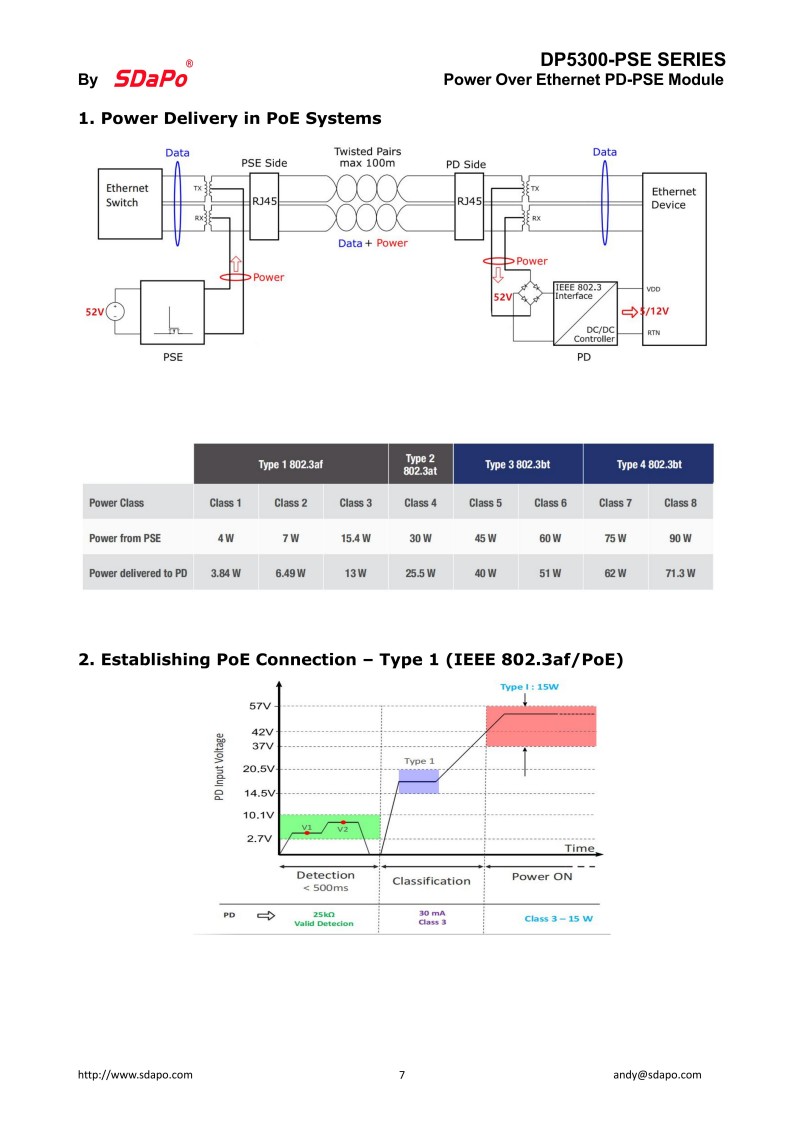

DP5300-PSE_07

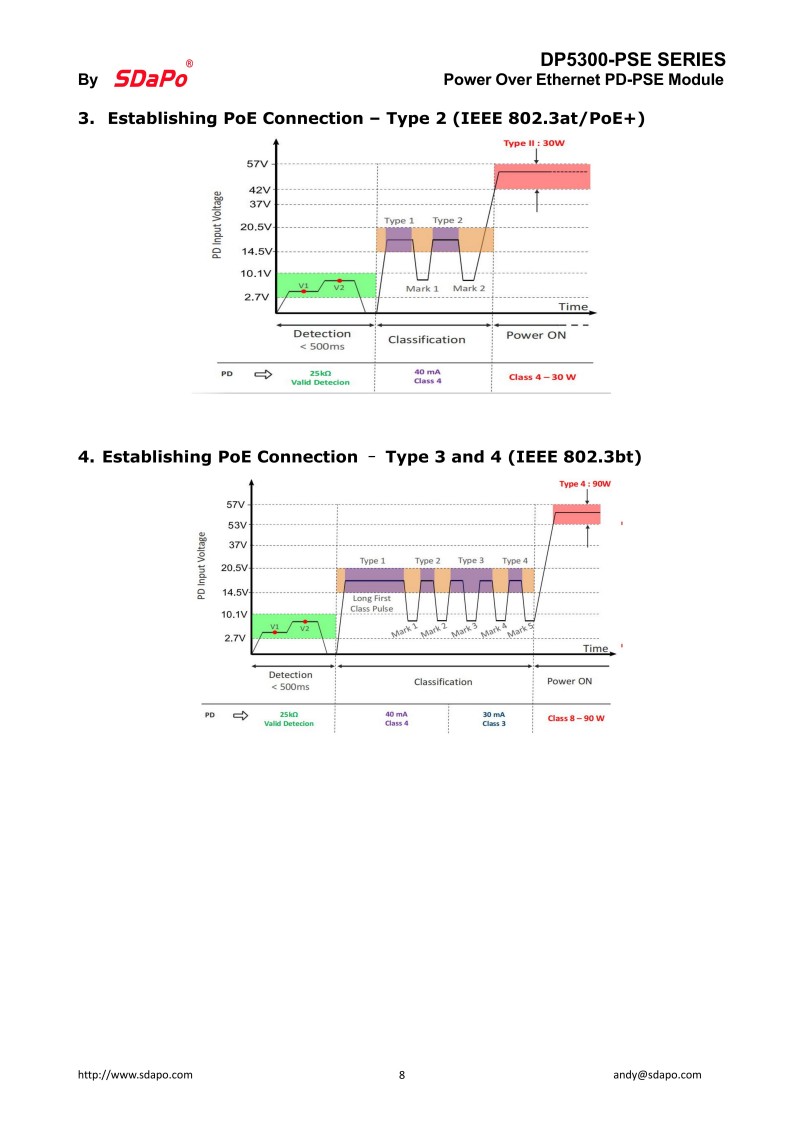

DP5300-PSE_08

PoE PD Module custom poe boards design poe power module board 48v poe ethernet module poe module board
