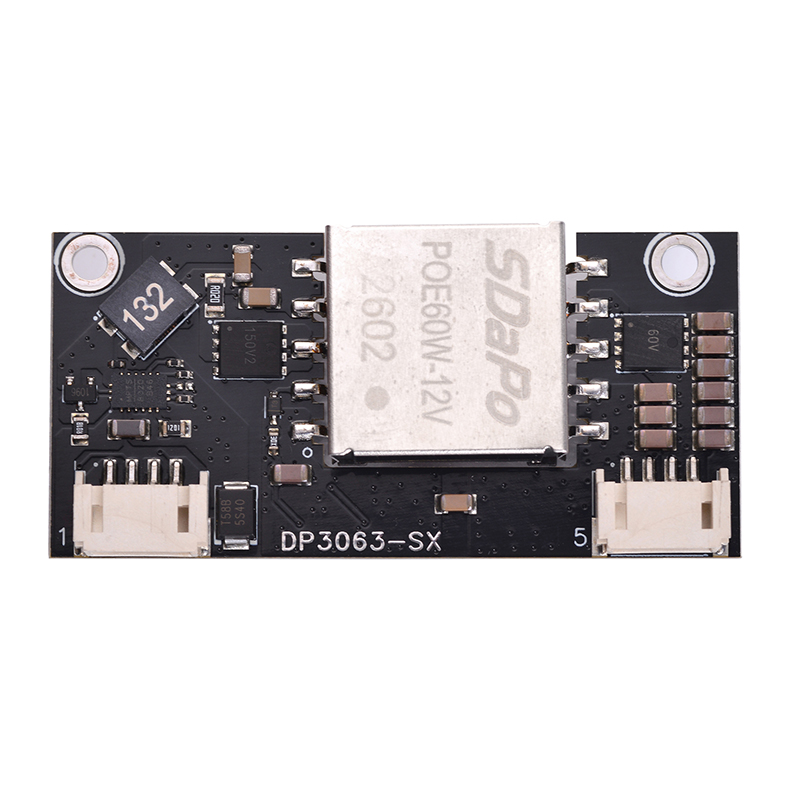

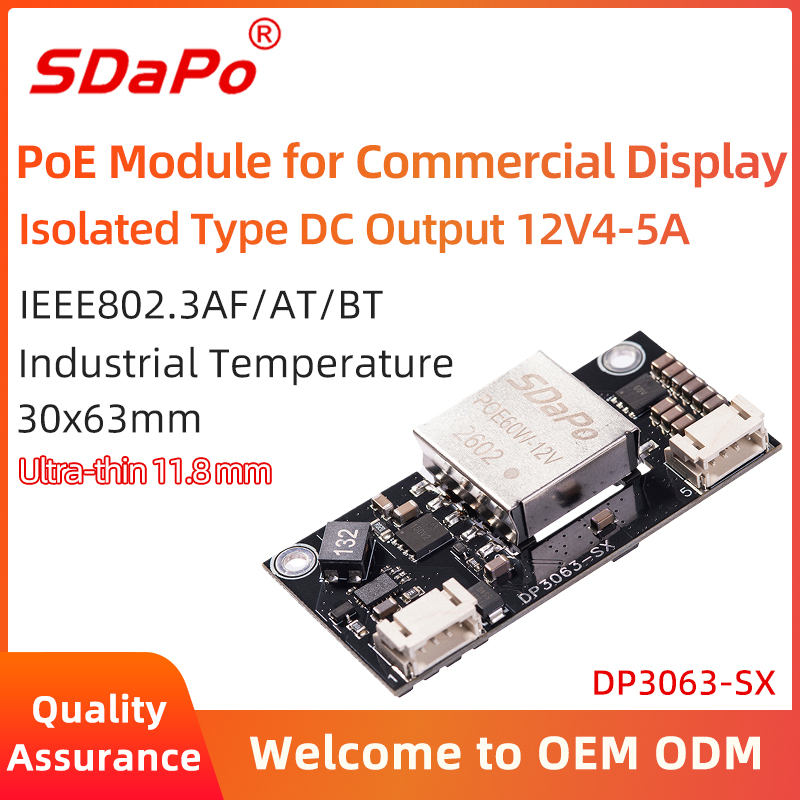

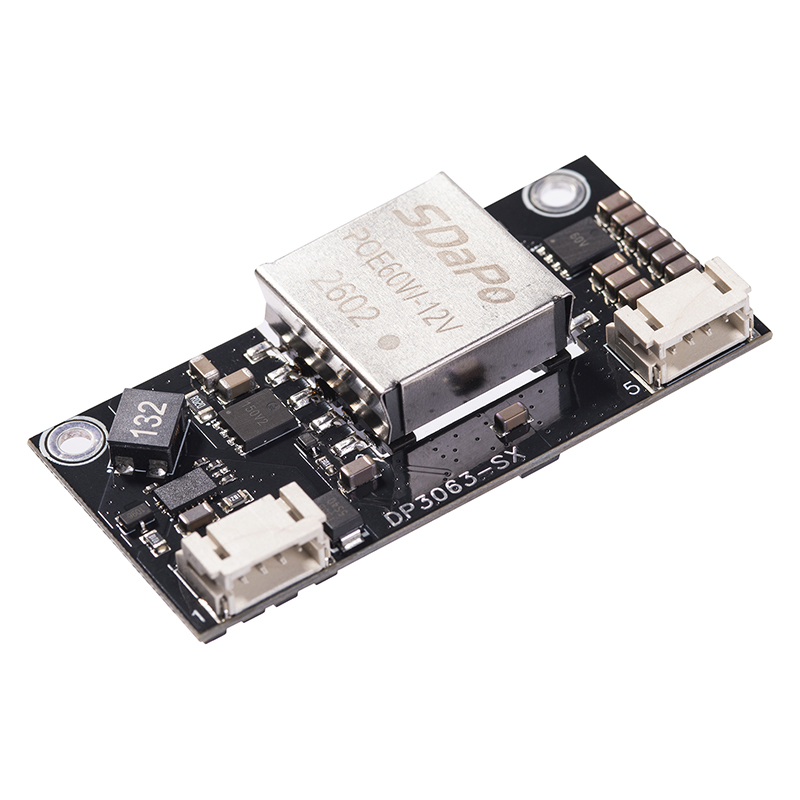

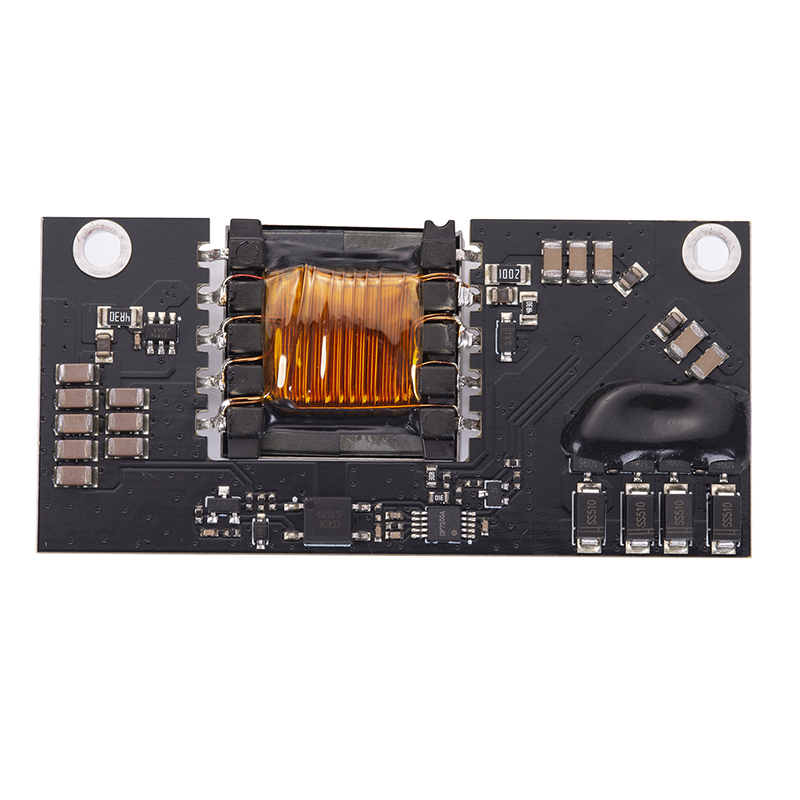

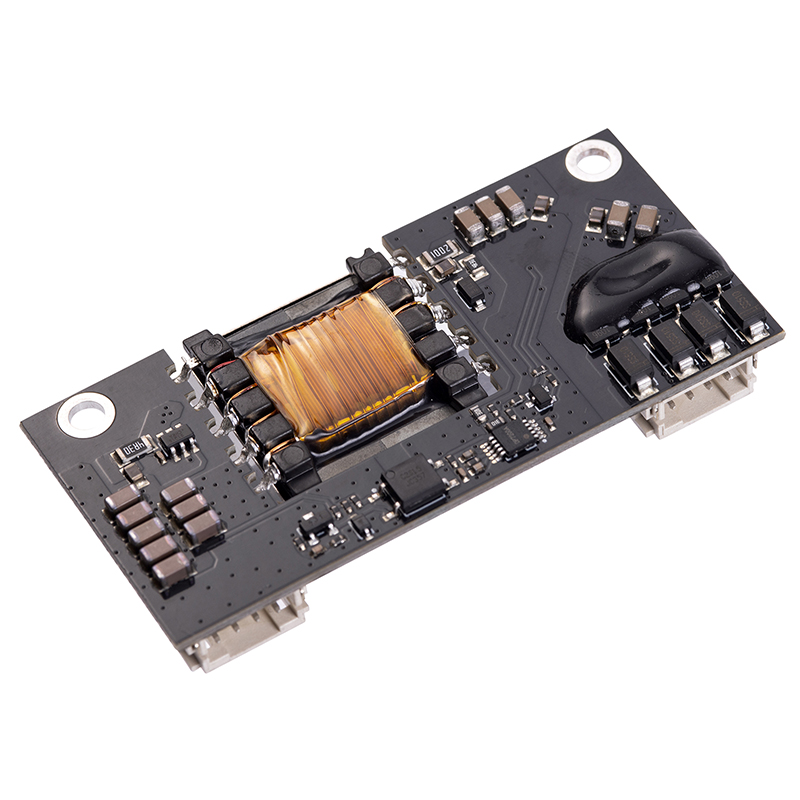

DP3063-SX PoE PD Mdoule 12V4-5A Isolated Type IEEE802.3bt PoE Module Board for Commercial Display

Name: DP3063-SX PoE PD Mdoule 12V4-5A Isolated Type IEEE802.3bt PoE Module Board for Commercial Display
Brand: SDaPo
SKU: 589112696
Rating: 5.0 (90 reviews)

1) IEEE802.3af/at/bt Standard
2) PoE IN:44-57V
3) DC/OUT:12V/4-5A
4) ISO:1.5KV
5) ModeA or ModeB
6) Size:30*63mm
7) total power:60W Peak
8) support 10M/100M/1000M/10G etc.
9)Industrial temperature to -40 ℃ to 85 ℃
10)use for commercial display,total height 11.8mm

Model:
DP3063-SX
Brand:
SDaPo

Output Vdc:	DP3063-SX
Availability:

Quantity:



Inquire Add to Basket

You are welcome to customize the POE modules of various size and connector and function.

The layout is after receive the research and development fee.

After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund.

It takes 7-10 days to produce samples.After the sample is qualified, batch production.

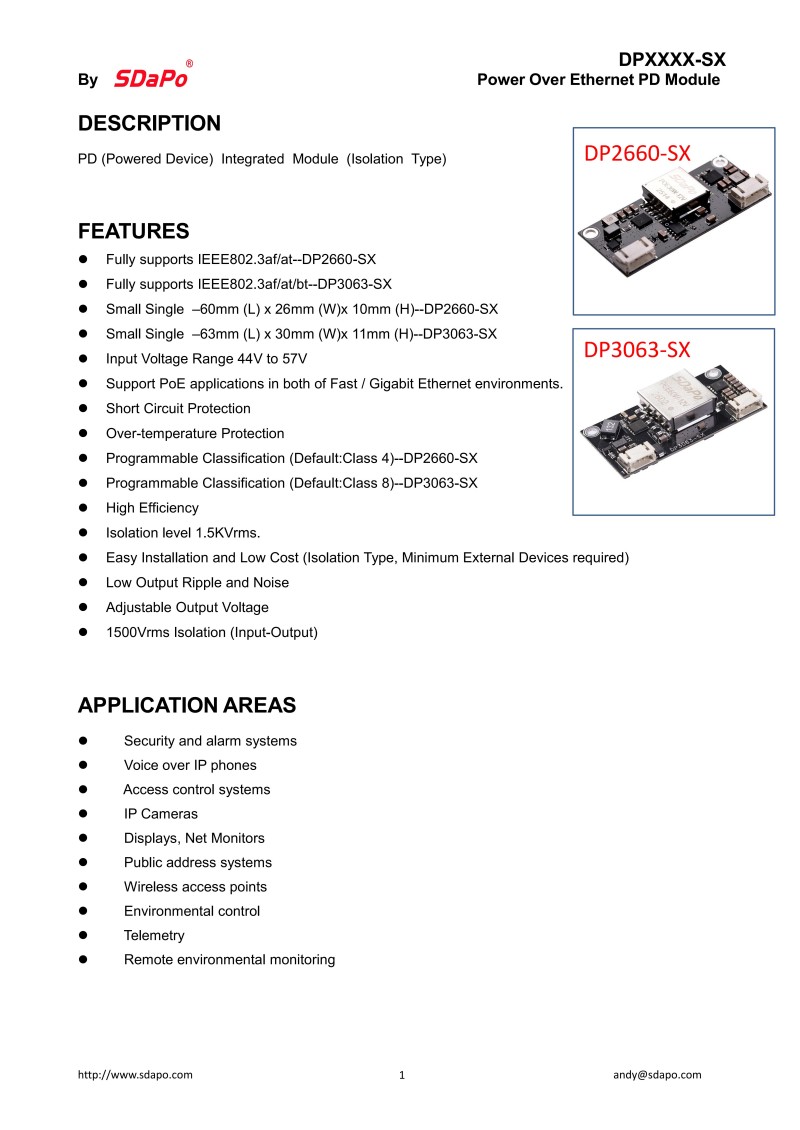

DP-SX -PoE Module(2)_01

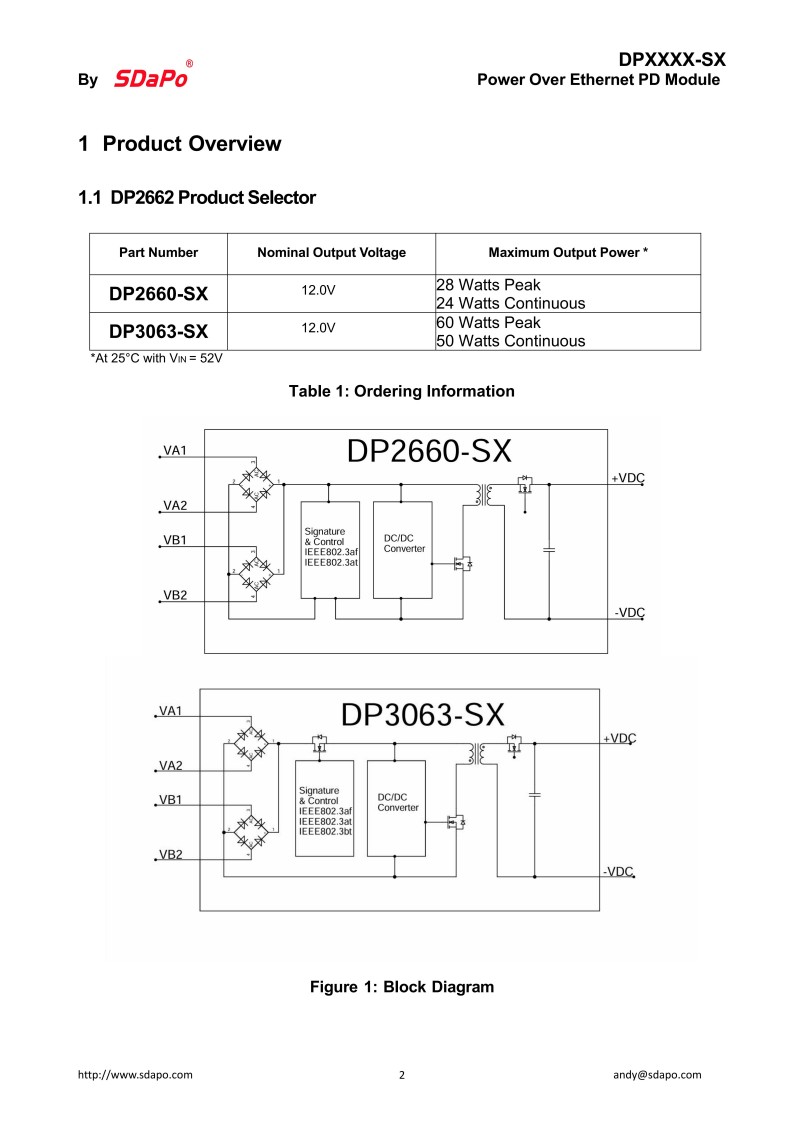

DP-SX -PoE Module(2)_02
DP-SX -PoE Module(2)_03
DP-SX -PoE Module(2)_04
DP-SX -PoE Module(2)_05

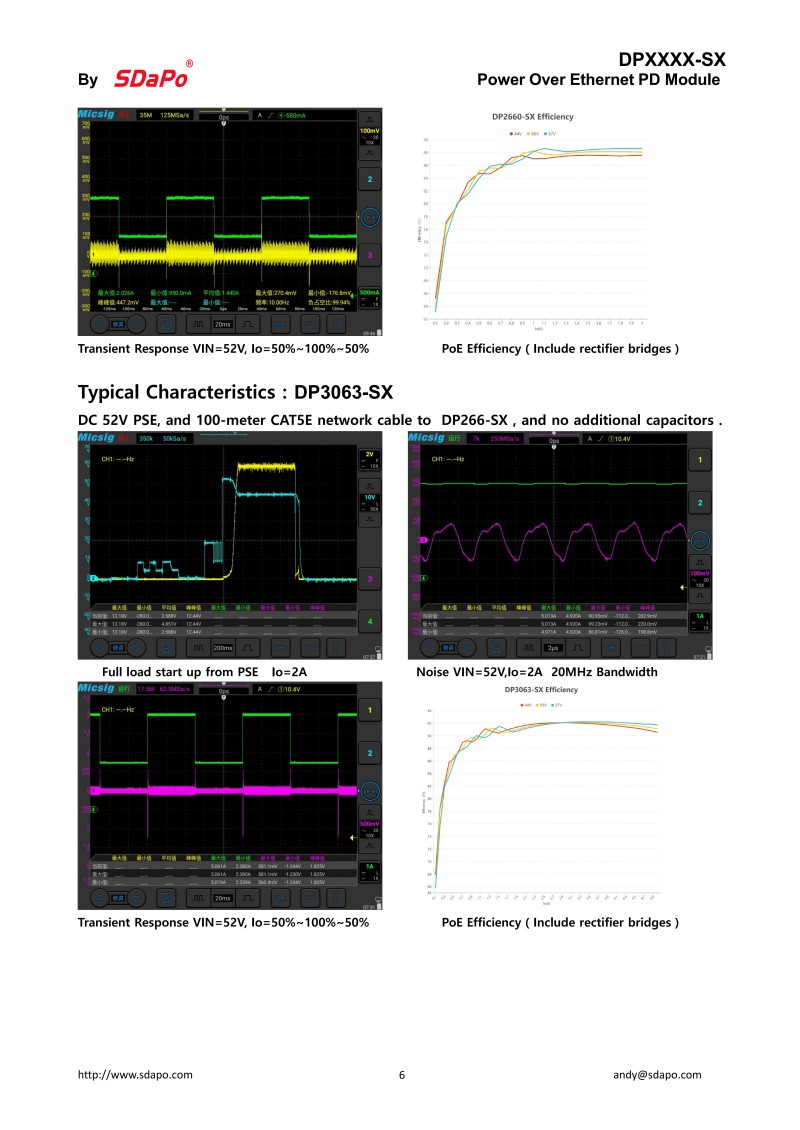

DP-SX -PoE Module(2)_06

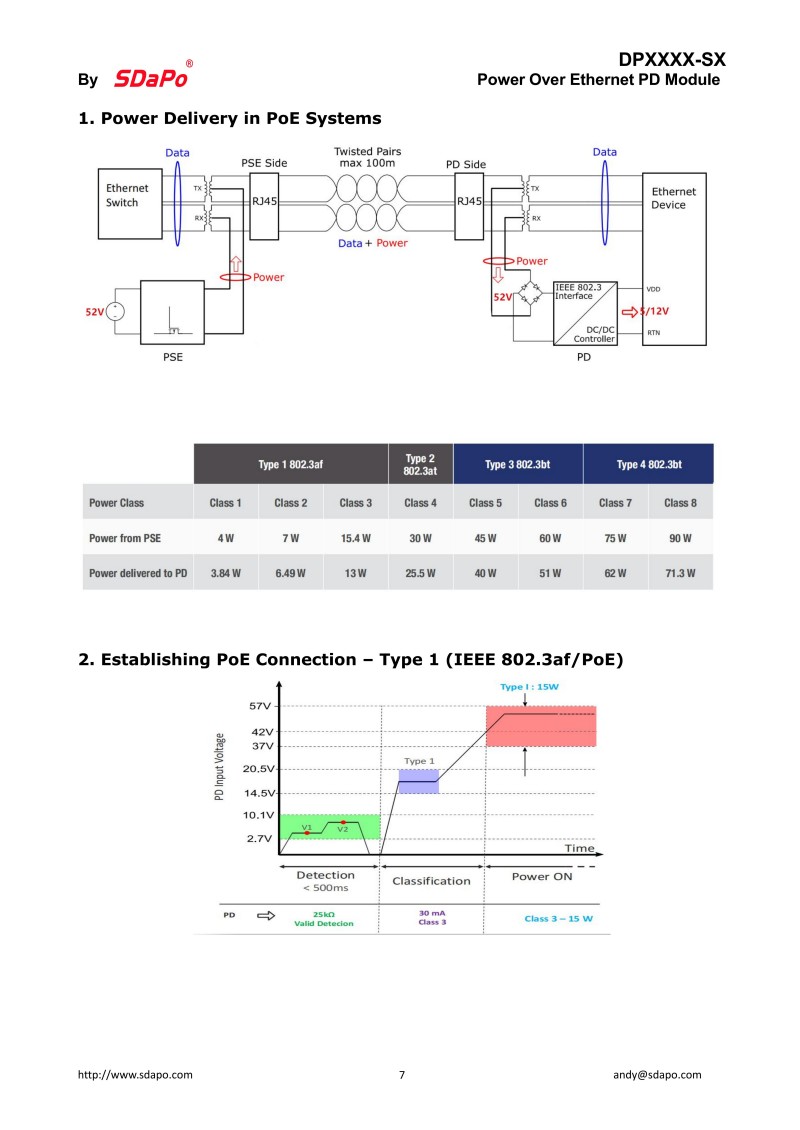

DP-SX -PoE Module(2)_07
DP-SX -PoE Module(2)_08

poe smart module poe ethernet module custom poe boards design poe module board
