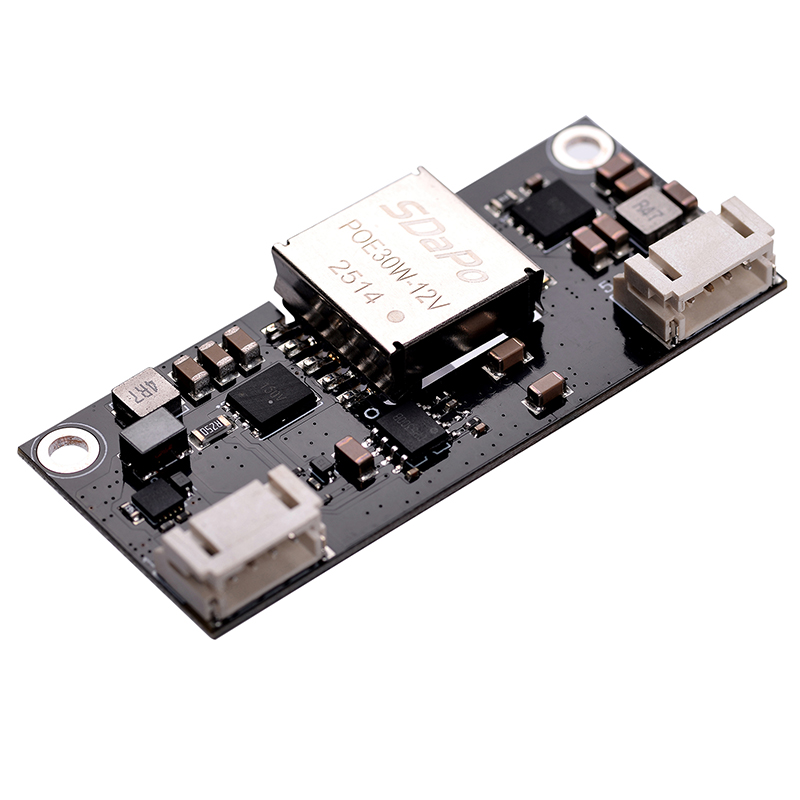

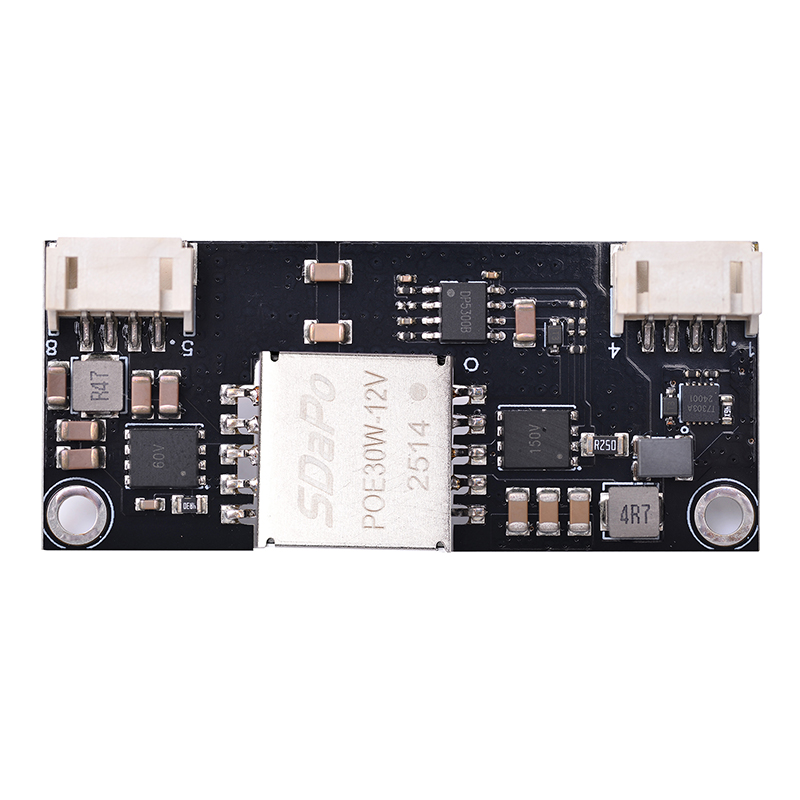

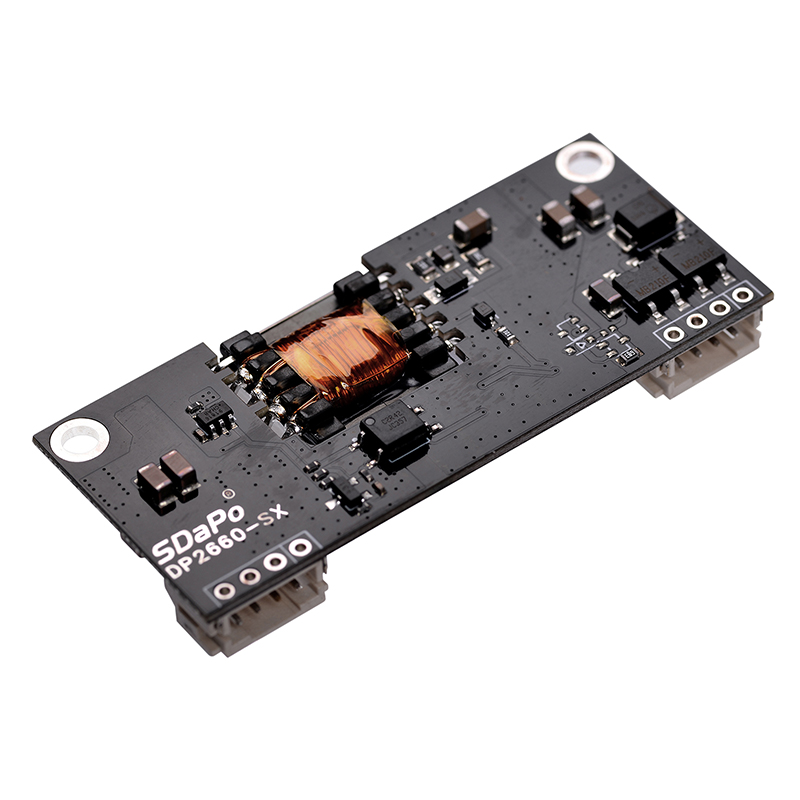

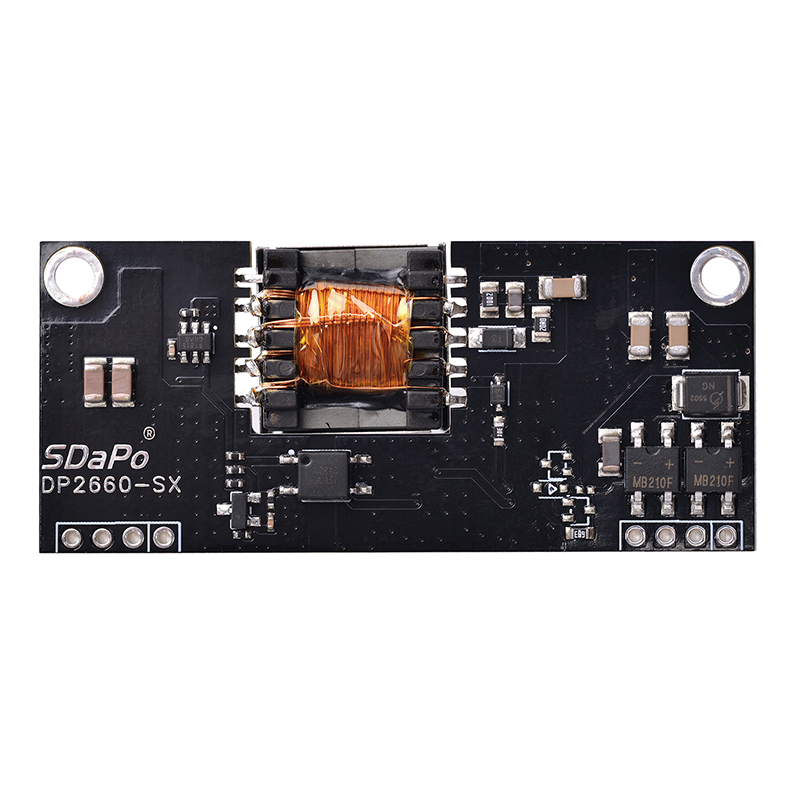

DP2660-SX 12V2A PoE Module Board for Commercial Display

Name: DP2660-SX 12V2A PoE Module Board for Commercial Display
Brand: SDAPO
SKU: 508106227
Rating: 5.0 (50 reviews)

1) IEEE802.3af/at Standard
2) PoE IN:44-57V(30W)
3) DC/OUT:12V/2A(25.5W)
4) ISO:1.5KV
5) ModeA or ModeB
6) Size:26*60mm
7) total power:25.5W
8) support 10M/100M/1000M/10G etc.
9)Industrial temperature to -40 ℃ to 85 ℃
10)use for commercial display,total height 9.6mm

Model:
DP2660-SX
Brand:
SDAPO

Output Vdc:	DP2660-SX 12V2A
Availability:

Quantity:



Inquire Add to Basket

Product Description

You are welcome to customize the POE modules of various size and connector and function. The layout is after receive the research and development fee. After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund. It takes 7-10 days to produce samples. After the sample is qualified, batch production.

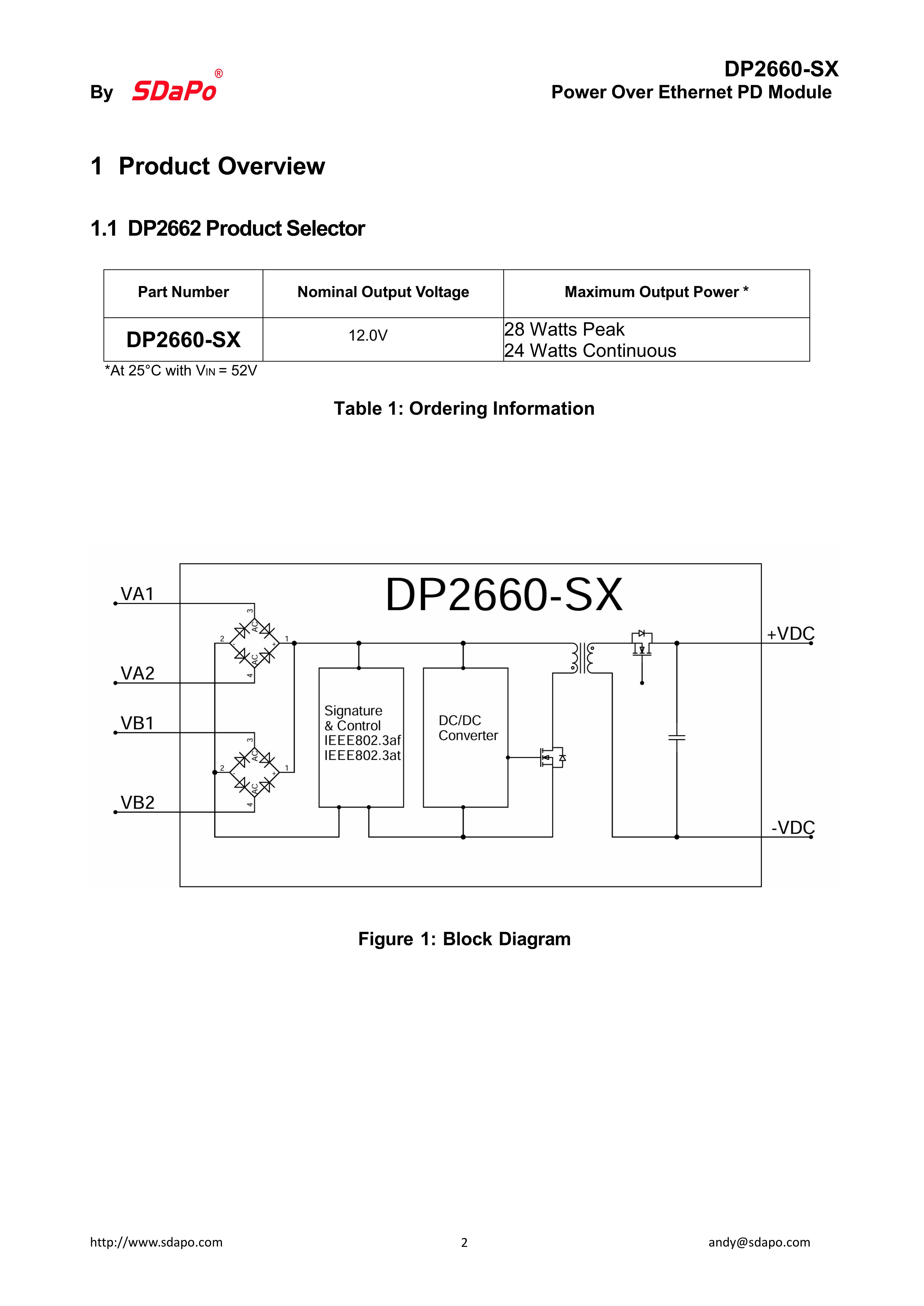

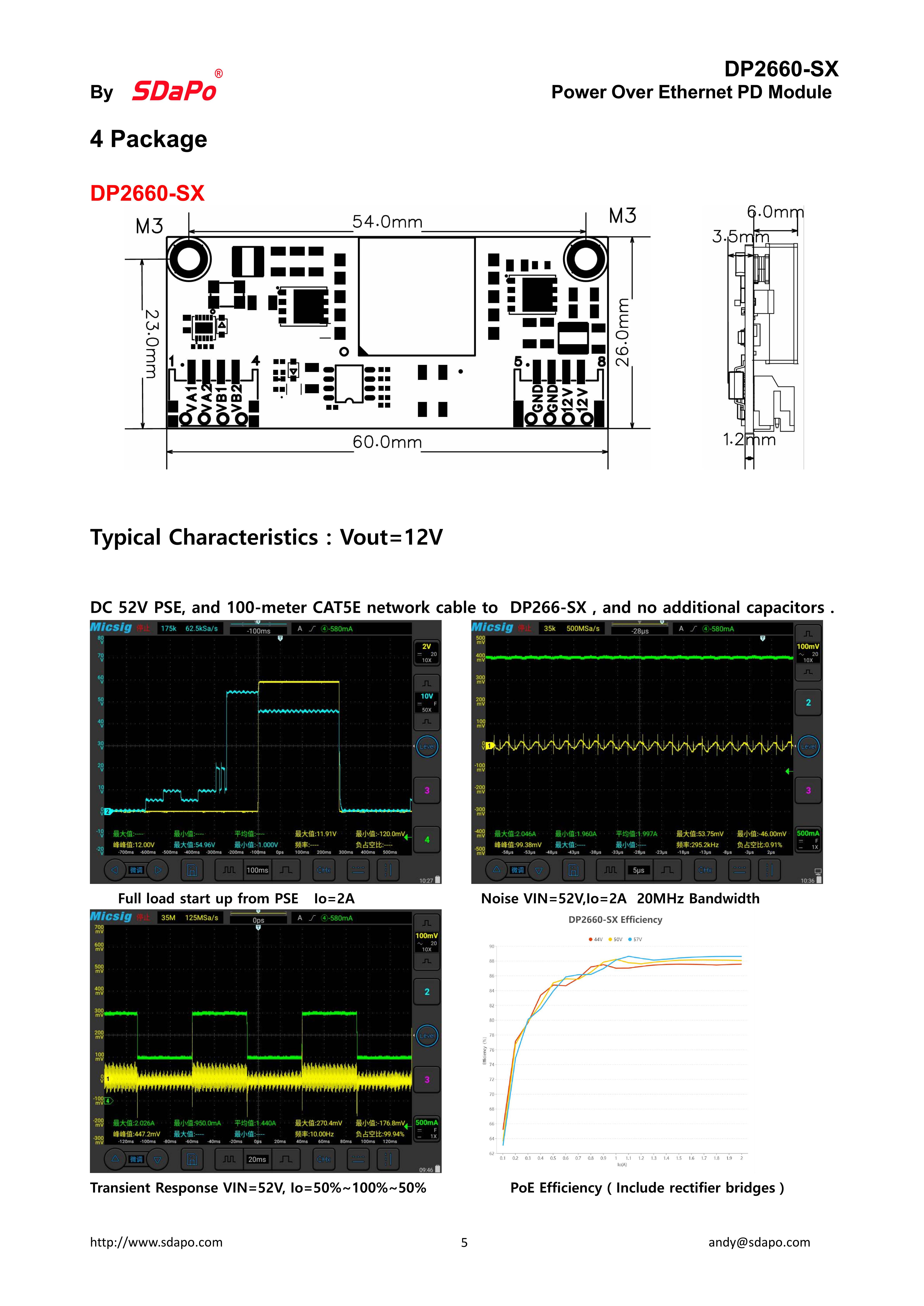

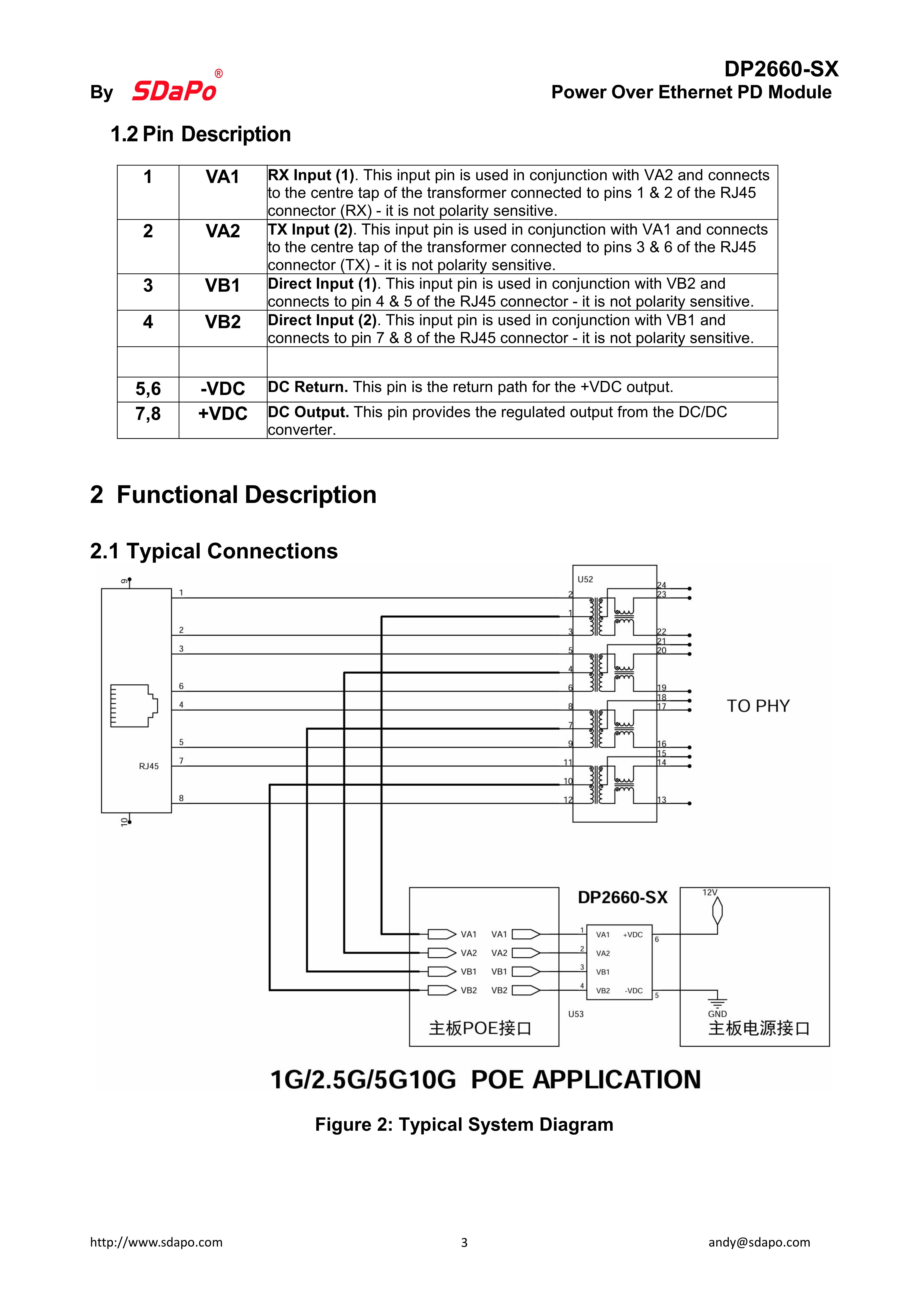

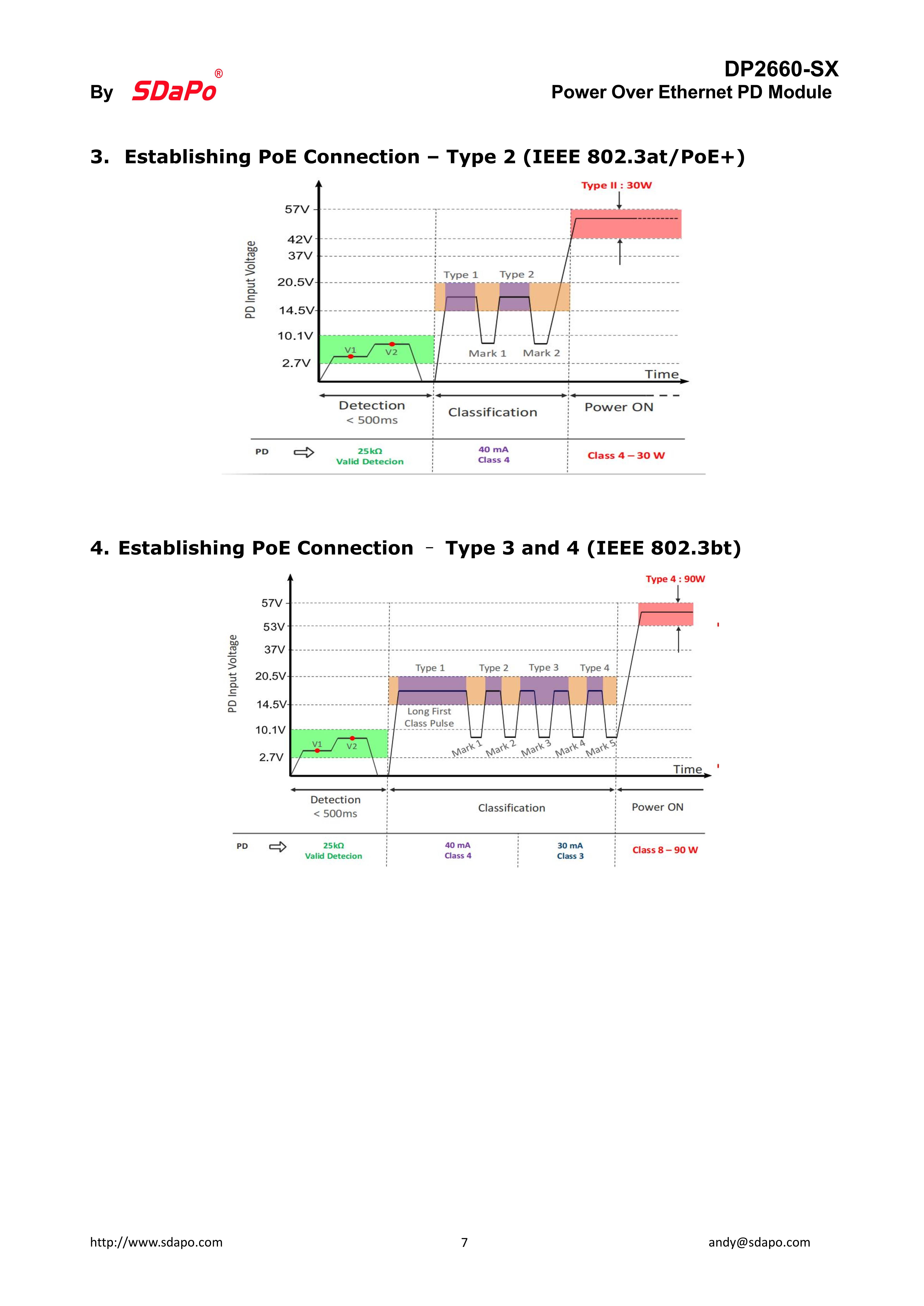

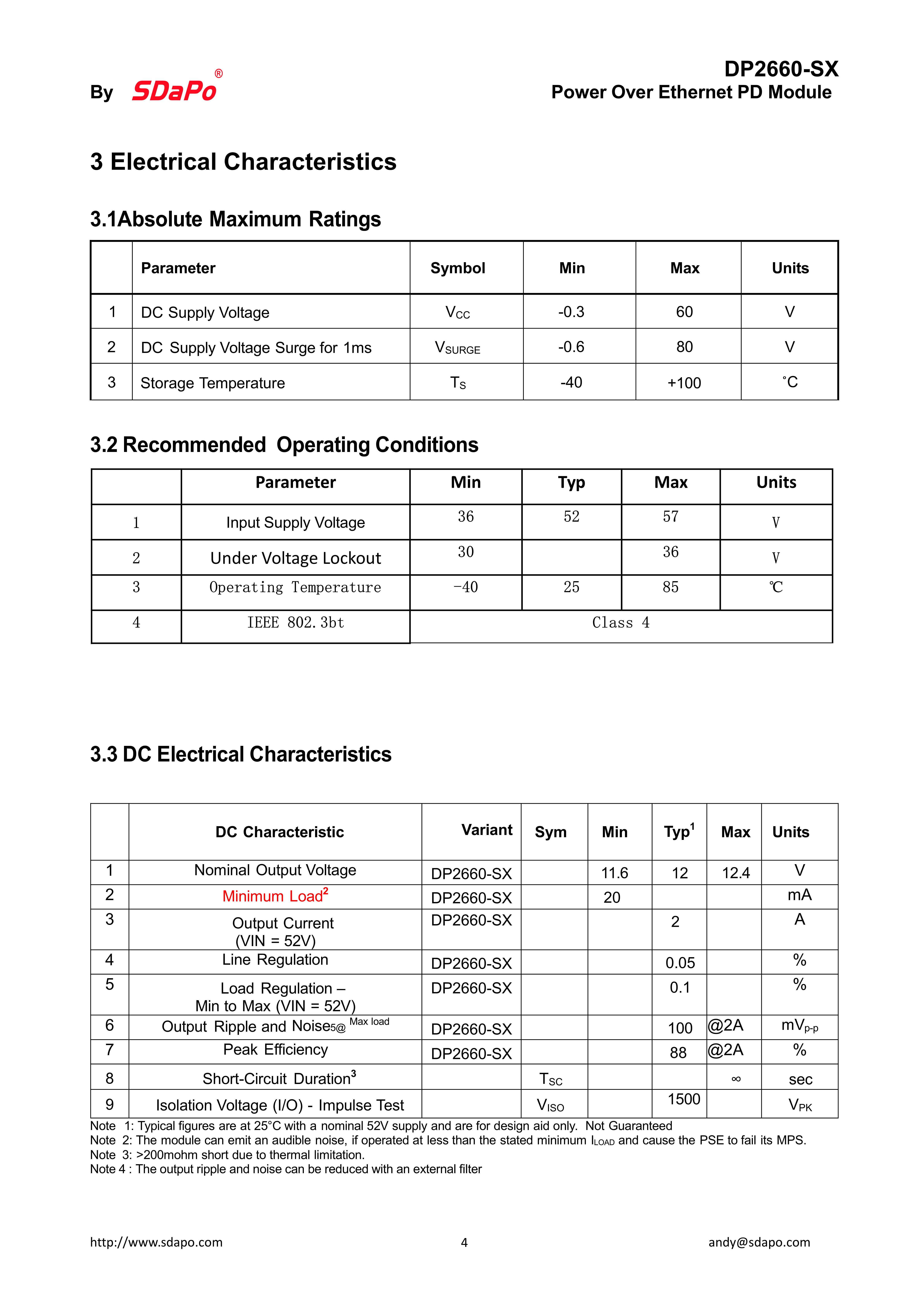

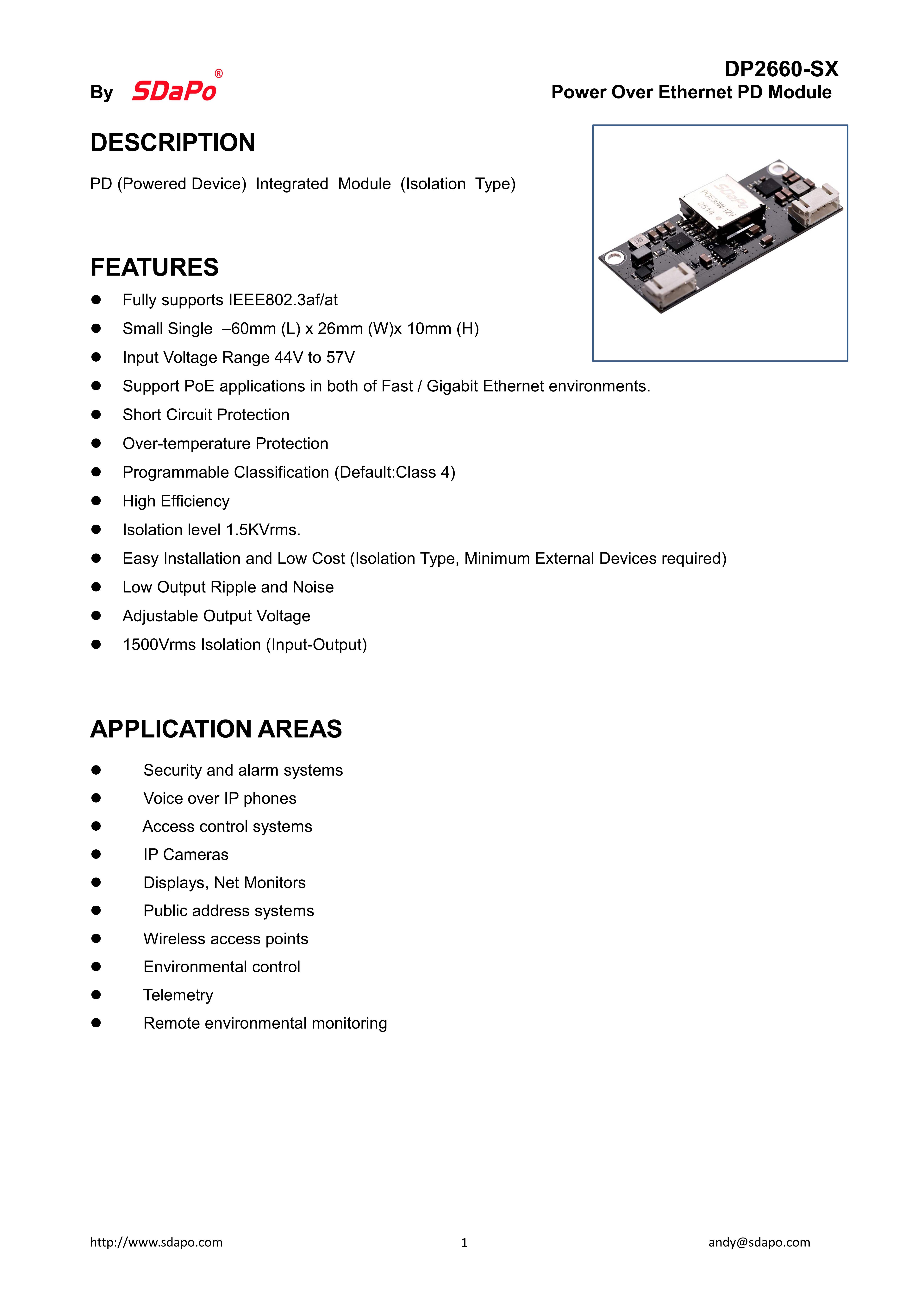

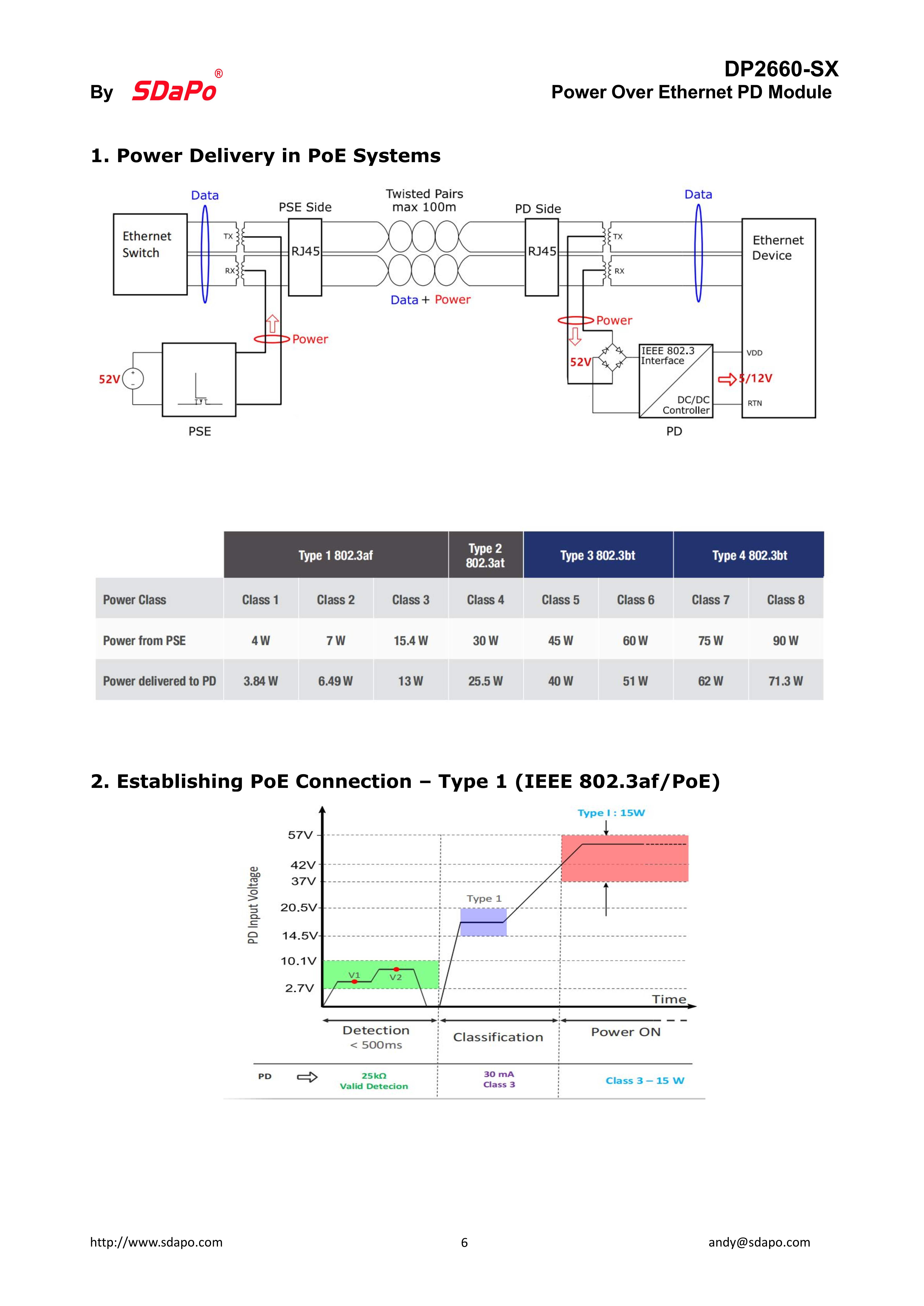

DP2660-SX Datesheet_1 DP2660-SX Datesheet_2 DP2660-SX Datesheet_3 DP2660-SX Datesheet_4 DP2660-SX Datesheet_5 DP2660-SX Datesheet_6 DP2660-SX Datesheet_7

DP2660-SX Datesheet

DP2660-SX Datesheet.pdf

Test Reports

2501R39186E(RoHS Test Report).PDF

2501R25347E(REACH Test Report).PDF

PoE Board for Commercial Displ SDAPO DP2660-SX PoE PD Module for Commercial Displ 12V2A for Commercial Displ
