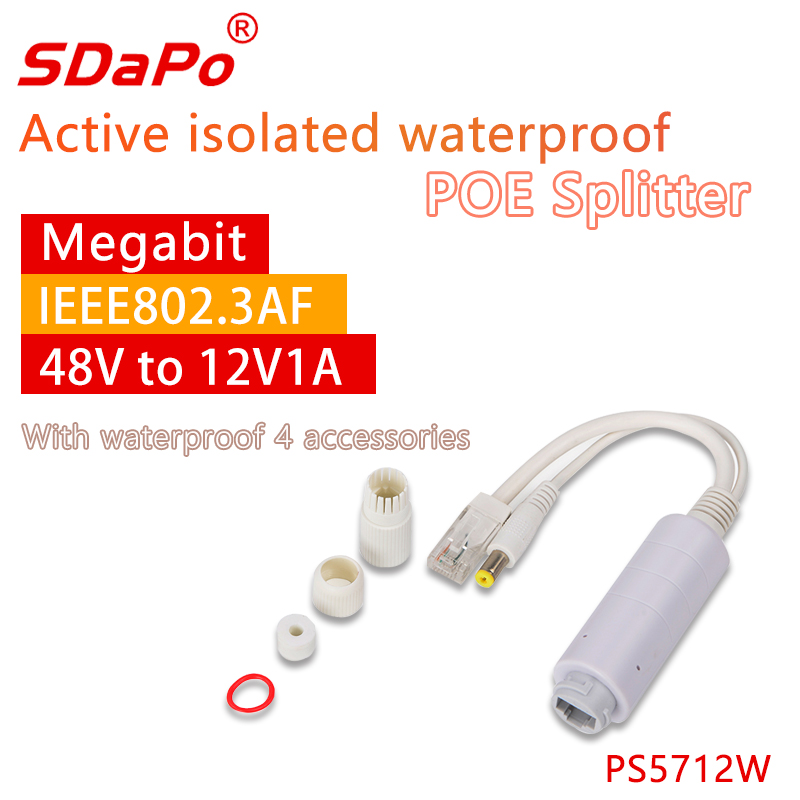

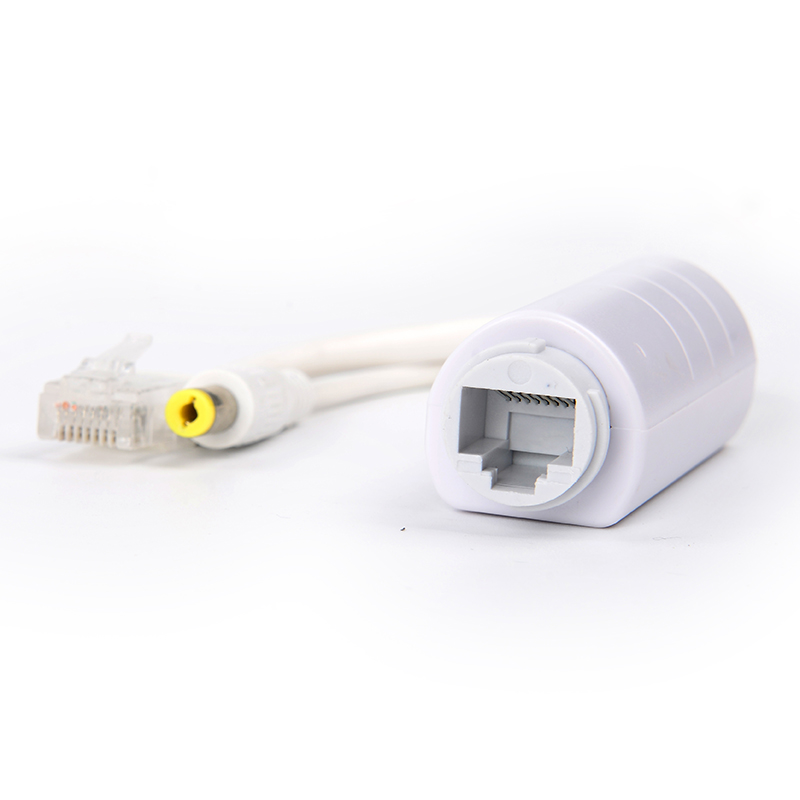

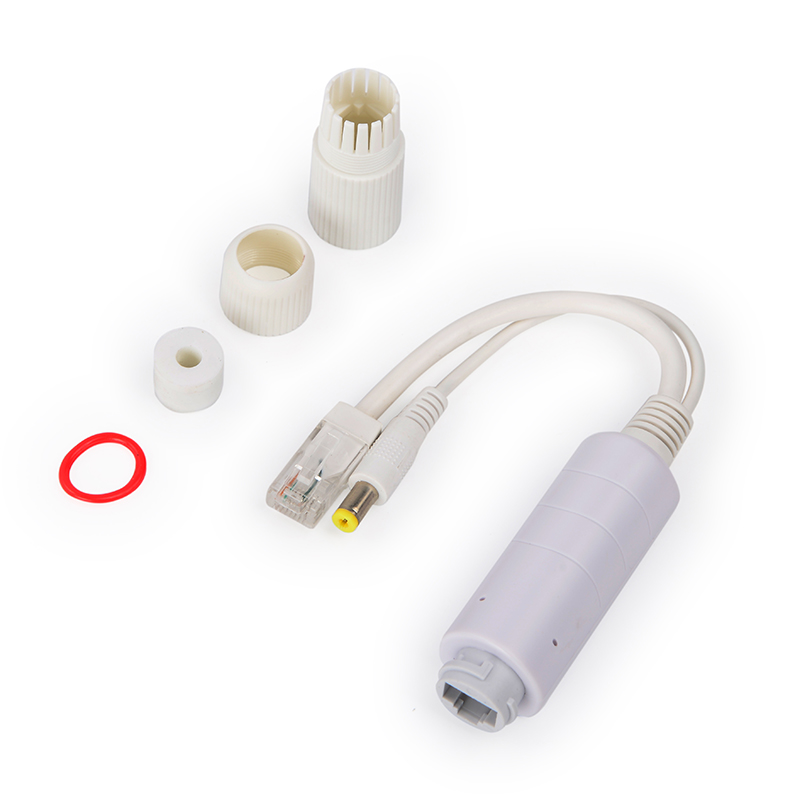

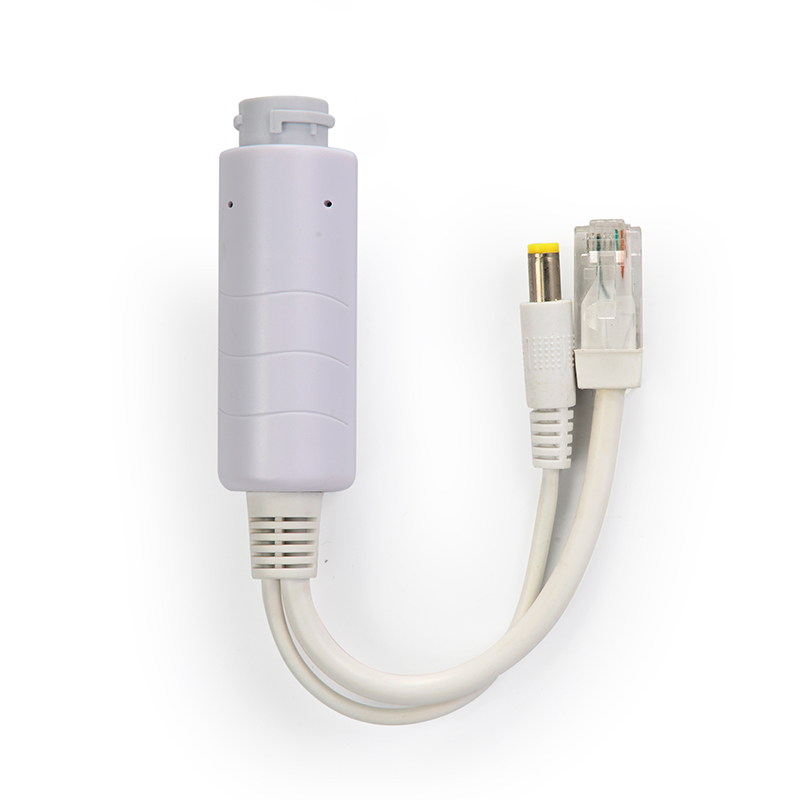

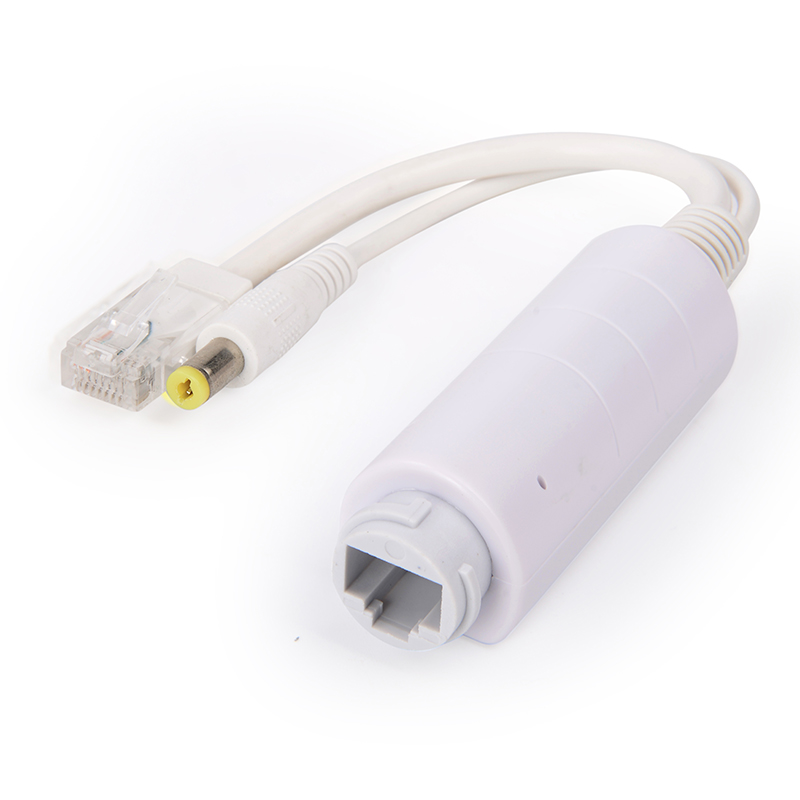

FS5712W 100Mbps 12V/1A Waterproof White PoE Splitter
FS5712W 100Mbps 12V/1A Waterproof White PoE Splitter FS5712W 100Mbps 12V/1A Waterproof White PoE Splitter
FS5712W 100Mbps 12V/1A Waterproof White PoE Splitter FS5712W 100Mbps 12V/1A Waterproof White PoE Splitter
FS5712W 100Mbps 12V/1A Waterproof White PoE Splitter FS5712W 100Mbps 12V/1A Waterproof White PoE Splitter
FS5712W 100Mbps 12V/1A Waterproof White PoE Splitter FS5712W 100Mbps 12V/1A Waterproof White PoE Splitter
FS5712W 100Mbps 12V/1A Waterproof White PoE Splitter FS5712W 100Mbps 12V/1A Waterproof White PoE Splitter

loading

测试

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

1) 100Mbit each port
2) IEEE802.3af Standard
3) PoE/IN:37-57V(15.4W)
4) ModeA or ModeB ISO:1.5KV
5) DC/OUT:12V/1A(12.95W)
6) Size: 66*24*22mm
7) total power:13W
8) 1500V high voltage isolation + waterproof

  • FS5712W

  • SDaPo

Availability:

分离器 型号表3

 DSC_0738-3 DSC_0738-3 DSC_0738-4 HWS_1208-2-800 DSC_0738-3 DSC_0738-3 HWS_1208-2-800 BLA_0519-2
Model No.
 PS0502G PS0503G PS0504G PS0504G Metal Shell
 PS5712G PS5712TG PS1248G PS1260G
Transfer Rate 100/1000Mbps 100/1000Mbps 100/1000Mbps 100/1000Mbps 100/1000Mbps 100/1000Mbps 100/1000Mbps 100/1000Mbps
DC Output 5V 2.4A 5V 3A 5V 4A 5V 4A 12V 1A 12V 2A 12V 4A 12V 5A
PoE Protocol IEEE802.3af IEEE802.3af/at IEEE802.3af/at IEEE802.3at 4Pair IEEE802.3af IEEE802.3af/at IEEE802.3at 4Pair IEEE802.3af/at/bt
Power 13W 15W 20W 20W 13W 24W 48W 60W
Interface Type

DC5.5x2.1mm

DC5.5x2.5

Type-C

Micro USB

DC5.5x2.1mm

DC5.5x2.5

Type-C

Micro USB

DC5.5x2.1mm

DC5.5x2.5

Type-C

Micro USB

DC5.5x2.1mm

DC5.5x2.1mm

DC5.5x2.5

Type-C

Micro USB

DC5.5x2.1mm

DC5.5x2.5

Type-C

Micro USB

 DC5.5x2.1mm

DC5.5x2.1mm

DC5.5x2.5

分离器型号表4

Picture DSC_0738-3 DSC_0738-4 DSC_1211-2 DSC_0738-3 DSC_0738-3 DSC_0738-3 DSC_0738-3
Model No. PS0502
 TYPEC0503
 FS5712
 PS5712P
 PS5712AT
 PS5712AT High-effect PS5724AT
Transfer Rate 100Mbps 100Mbps 100Mbps 100Mbps 100Mbps 100Mbps 100Mbps
DC Output 5V 2.4A 5V 3A 12V 1A 12V 1A 12V 2A 12V 2A 24V 1A
PoE Protocol IEEE802.3af IEEE802.3af/at IEEE802.3af IEEE802.3af IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at
Power 13W 24W 13W 13W 24W 24W+ 24W
Interface Type

DC5.5x2.1mm

Type-C

Micro USB

Type-C

DC5.5x2.1mm

DC5.5x2.1mm

DC5.5x2.1mm

DC5.5x2.5

Type-C

Micro USB

DC5.5x2.1mm

DC5.5x2.5

Type-C

Micro USB

DC5.5x2.1mm

DC5.5x2.5

Type-C

Micro USB

分离器型号表5

Picture PS1224G (1) PS1224G (1) PS1224G (1) PS1224G (1) DSC_0738-3 DSC_0738-3
Model No. PS1224G-5V3A PS1224G-5V4A PS1224G-12V2A PS1224G-24V1A PS5724TG PS5712BG
Transfer Rate 100/1000/2500Mbps 100/1000/2500Mbps 100/1000/2500Mbps 100/1000/2500Mbps 100/1000/2500Mbps 100/1000/2500Mbps
DC Output 5V 3A 5V 4A 12V 2A 24V 1A 24V 1A
 12V 3A
PoE Protocol IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at/bt
Power 15W 20W 24W 24W 24W 36W
Interface Type DC5.5x2.1mm DC5.5x2.1mm DC5.5x2.1mm DC5.5x2.1mm

DC5.5x2.1mm

DC5.5x2.5

Type-C

Micro USB

DC5.5x2.1mm

DC5.5x2.5

Type-C

Micro USB

Product Selection Table

Model No.Network Transfer RatePoE Protocol
DC OutputPowerInterface Type
PS0502G100/1000MbpsIEEE802.3af5V 2.4A13WDC5.5x2.1mm / DC5.5x2.5mm / Type-C / Micro USB
PS5712G100/1000MbpsIEEE802.3af12V 1A13WDC5.5x2.1mm / DC5.5x2.5mm / Type-C / Micro USB
PS0503G100/1000MbpsIEEE802.3af/at5V 3A15WDC5.5x2.1mm / DC5.5x2.5mm / Type-C / Micro USB
PS0504G100/1000MbpsIEEE802.3af/at5V 4A20WDC5.5x2.1mm / DC5.5x2.5mm / Type-C / Micro USB
PS5712TG100/1000MbpsIEEE802.3af/at12V 2A24WDC5.5x2.1mm / DC5.5x2.5mm / Type-C / Micro USB
PS0504G Metal Shell100/1000MbpsIEEE802.3at 4Pair5V 4A20WDC5.5x2.1mm
PS1248G100/1000MbpsIEEE802.3at 4Pair12V 4A48WDC5.5x2.1mm
PS1260G100/1000MbpsIEEE802.3af/at/bt12V 5A60WDC5.5x2.1mm / DC5.5x2.5mm
PS1224G-5V3A100/1000/2500MbpsIEEE802.3af/at5V 3A15WDC5.5x2.1mm
PS1224G-5V4A100/1000/2500MbpsIEEE802.3af/at5V 4A20WDC5.5x2.1mm
PS1224G-12V2A100/1000/2500MbpsIEEE802.3af/at12V 2A24WDC5.5x2.1mm
PS1224G-24V1A100/1000/2500MbpsIEEE802.3af/at24V 1A24WDC5.5x2.1mm
PS5712TG100/1000/2500MbpsIEEE802.3af/at24V 1A24WDC5.5x2.1mm / DC5.5x2.5mm / Type-C / Micro USB
PS5712BG100/1000/2500MbpsIEEE802.3af/at/bt12V 3A36WDC5.5x2.1mm / DC5.5x2.5mm / Type-C / Micro USB
PS0502100MbpsIEEE802.3af5V 2.4A13WDC5.5x2.1mm / Type-C / Micro USB
PS5712P100MbpsIEEE802.3af12V 1A13WDC5.5x2.1mm
PS5712100MbpsIEEE802.3af12V 1A13WDC5.5x2.1mm
TYPEC0503100MbpsIEEE802.3af/at5V 3A24WType-C
PS5712AT100MbpsIEEE802.3af/at12V 2A24WDC5.5x2.1mm / DC5.5x2.5mm / Type-C / Micro USB
PS5712AT High-effect100MbpsIEEE802.3af/at12V 2A24W+DC5.5x2.1mm / DC5.5x2.5mm / Type-C / Micro USB
PS5724AT100MbpsIEEE802.3af/at24V 1A24WDC5.5x2.1mm / DC5.5x2.5mm / Type-C / Micro USB
Model No.
Network Transfer RatePoE ProtocolDC OutputPoE INInterface Type
PS5724AT-RJ100MbpsIEEE802.3af/at24V 1A44V-57VRJ45
PS5724TG-RJ100/1000MbpsIEEE802.3af/at24V 1A44V-57VRJ45


Product Description

Overview

PoE splitter,Waterproof it is an economical and practical PoE remote power equipment base on IEEE802.3af standard. It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af,Provides power and data at the same time for the terminal device does not support PoE.
PoE splitter, output voltage of 12V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.

Features

· Support international standard IEEE802.3 af(15.4W);

· Support 10/100Mdata transmission

· PD support 37V-57V voltage transmission,Automatically detects power supply from PSE power supply module

· 12V power output,easy to access Poe network for non-poe terminal

· Support the isolation circuit protection,can effectively protect electrical equipment.

· Support the short circuit,overvoltage protection

· 1500V high voltage isolation + Waterproof

Technical Parameters

Model

FS5712B(black)  FS5712W (white)

Transfer Rate

10/100M

Power

Input 48V DC /0.35A, Output 12V/1A

Standard

IEEE802.3 af(15.4W)

TRNF

1/2(+),3/6(-);4/5(+),7/8(-)

Interface Type

1 Input RJ45 port, 1 output RJ45 port, 1 DC output



Standard

IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af

LED

Yellow PoE lamp

Environment

Work within -20~50°,Storage within -30~60°

Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing

Dimension

66L * 24W *22H

Weight

0.2kg

The main parameters：

No.

Parameter

Symbol

Min

Typical values

Max

Unit

1

Input Voltage

Vin

37

48

57

V

2

output voltage

+VDC

11.8

12

12.3

V

3

output Current

PWR


1

1.08

A

4

Isolation Voltage

ISO

1.48

1.5

1.52

KV

5

Storage Temperature

Tj

-40

25

105

℃

6

Operating Temperature

Tstg

-20

25

65

℃
