How does a PoE Injector work? How to Use the PoE Injector ?

I. How does a PoE injector work?

When a non-PoE switch or other device is connected to a powered device (such as an IP camera, etc.), a PoE injector can simultaneously provide power and data transmission support to these powered devices. Generally, a PoE injector first converts AC power to DC power and then supplies power to low-voltage PoE terminal devices.

Connected between a non-PoE switch and a PoE-enabled terminal device (PD), it uses the idle pairs in the network cable to transmit DC power, achieving "dual use of one line" (simultaneous data and power transmission). For example, it combines the data signal from a regular switch with power and outputs it to a camera.

The difference from a PoE switch is that a PoE injector only provides power injection and does not participate in data exchange, relying on the existing switch to complete data transmission.

Smart power supply process:

Device detection (identify compliant PD) → Power negotiation (match requirements) → Stable power supply → Real-time monitoring (automatic power-off in case of short circuit or overload)

II. How to use a PoE injector and connection steps

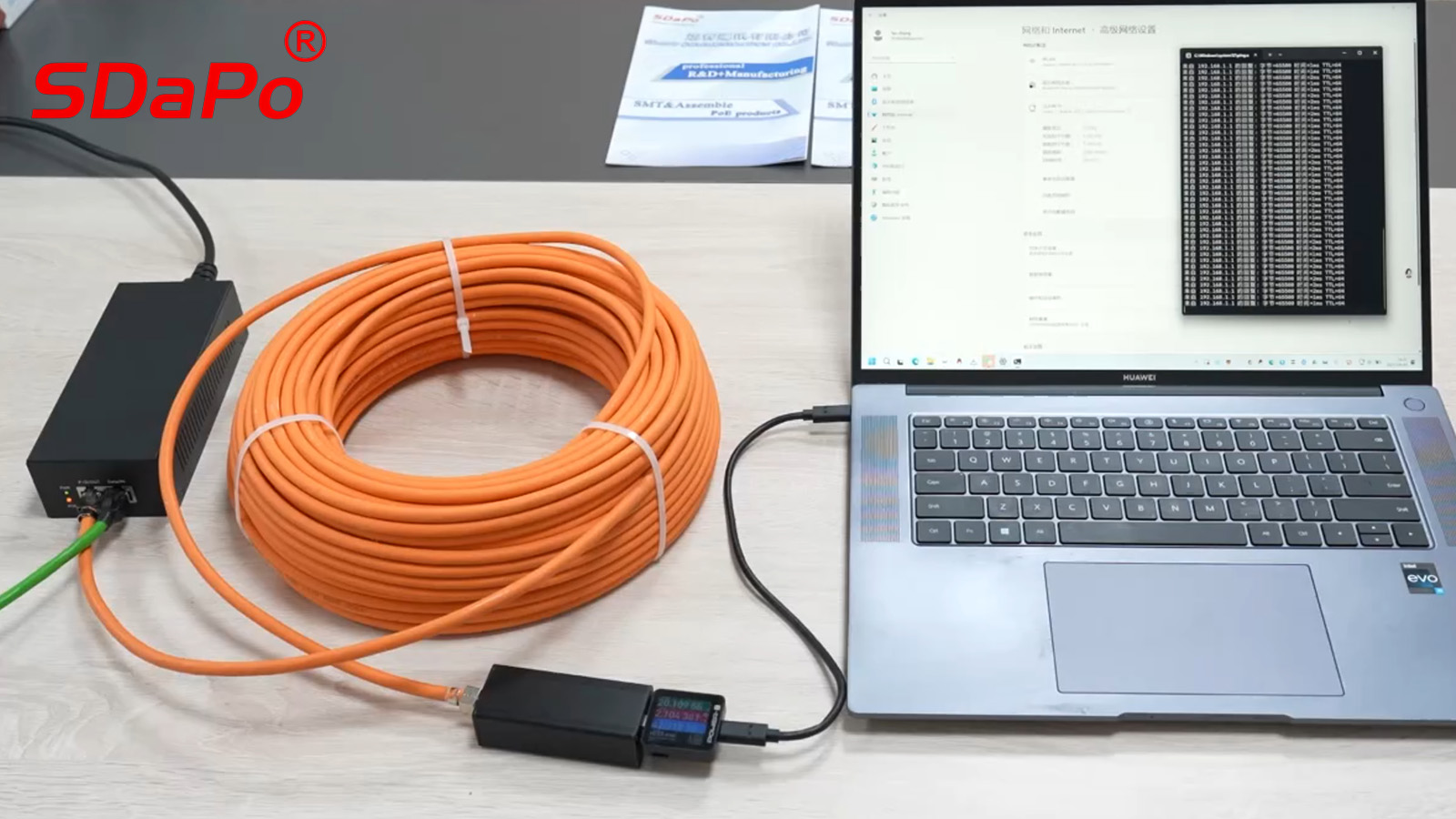

1. Basic wiring process

① Connect the LAN port of the PoE injector to a regular port of a non-PoE switch with a network cable.

② Connect the PoE/PoE+ port of the injector to the powered device (such as a camera, etc.) with another network cable and power on the injector's power adapter (note the input voltage match).

Key points: Use category 5 or higher network cables, and the distance should be ≤ 100 meters to ensure stable power supply.

2. Verify power supply status

After the powered device is powered on, observe the indicator lights.

Constantly lit power light: Power supply is normal (green/blue).

Flashing network light: Data path established.

III. What factors should be considered when purchasing a PoE injector?

Before purchasing a PoE injector, it is necessary to determine which type of PoE injector is suitable for you. Considerations can generally be made from the following three aspects.

1. Number of powered devices: If there is only one powered device, a single-port PoE injector is sufficient. If there are multiple PoE terminal devices, ensure that the number of ports on the PoE injector matches.

2. PoE single-port power: Ensure that the PoE injector and the connected powered device comply with the same PoE standard. There are usually three PoE power standards: 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++).

3. Power supply voltage: Ensure that the operating voltage of the PoE injector and the connected powered device is consistent. For example, most surveillance cameras operate at 12V or 24V. At this time, you need to verify whether the power supply voltage of the PoE injector matches the operating voltage of the camera to avoid voltage overload or operational failure.
